DIESEL PARTICULATE FILTER [SKYACTIV-D 2.2]
id0116e1707900
Purpose, Function
• The diesel particulate filter collects and removes particulate matter (PM) in the exhaust gas.
Construction
• Diesel particulate filter is built-in catalytic converter.
Operation

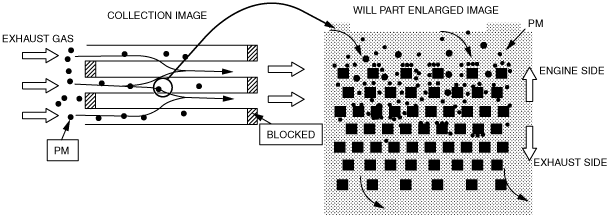

• Diesel particulate filter is a silicon carbide honey-comb type filter. The filter ends are blocked in sequence and small holes on the wall inside the filter collect PM, and the collected PM is burned and eliminated.
