CATALYTIC CONVERTER [SKYACTIV-D 2.2]

id0116e1814400


Purpose, Function

•  Purifies contaminants in the exhaust gas by utilizing chemical reactions.

Construction

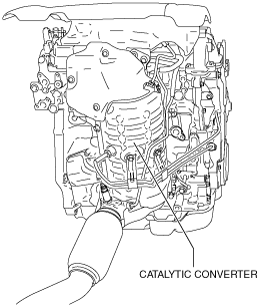

•  The catalytic converter is installed to the rear of the engine.
ac5wzn00001982

Operation

•  The catalytic converter converts the noxious carbon monoxide and hydrocarbon in the exhaust gas to non-noxious carbon dioxide and water.
Oxidization process
O2+ HC + CO = CO2+ H2O
