EVAPORATIVE CHAMBER REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id0116zb809800

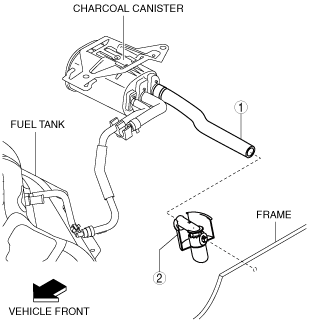

1.  Remove in the order indicated in the table.

am6zzw00010461

1	Evaporative hose
2	Evaporative chamber

2.  Install in the reverse order of removal.
