DC-DC CONVERTER CONTROL [SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id0140g2004300

Without i-ELOOP

Outline

•  Stability of the power supply to the cabin has been realized by preventing decreases in the power supply due to battery voltage decreases while the engine is restarted by the i-stop control.

•  When the engine is restarted by the i-stop control, the PCM sends a battery voltage (DC-DC converter downstream voltage) boost request signal to the DC-DC converter.

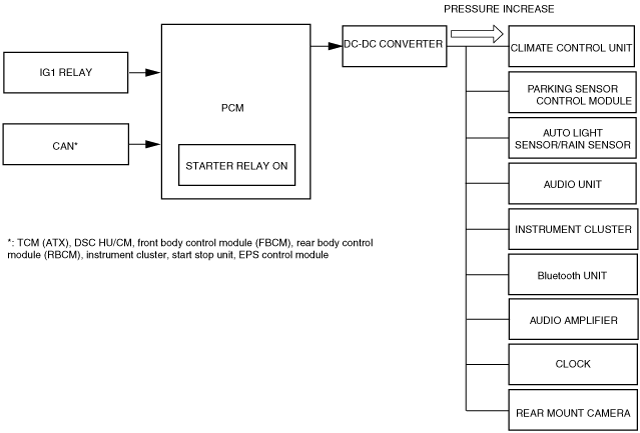

Block Diagram

ac5wzn00001575

Operation

•  When the engine is restarted by the i-stop control, the PCM sends a voltage boost request signal to the DC-DC converter so that the DC-DC converter downstream voltage is maintained at 11.5―12.5 V.
