ENGINE COOLANT TEMPERATURE (ECT) SENSOR [SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id0140g2006200

Purpose/Function

• Detects the ECT as basic information for mainly determining the fuel injection amount.

• Detects the ECT and inputs it to the PCM as an ECT signal.

Construction

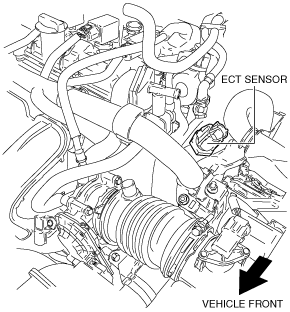

• Installed to the water outlet case.

ac5wzn00000017

• A thermistor has been adopted as the detecting element for detecting the ECT.

Operation

• Inputs the signal, which fluctuates according to the ECT, to the PCM.

am3uun00001656

ECT sensor characteristic

ac5wzn00000018

Fail-safe

DTC No.

Fail-safe function

P0117:00

•  Fixes the water temperature for the engine control at 40 °C {104 °F}, and for the idle air control at 80 °C {176 °F}.

•  Operates the cooling fan (high speed rotation).

•  Inhibits the fuel cut control during shift change.

P0118:00

•  Fixes the water temperature for the engine control at 40 °C {104 °F}, and for the idle air control at 80 °C {176 °F}.

•  Operates the cooling fan (high speed rotation).

•  Inhibits the fuel cut control during shift change.

DTC No.	Fail-safe function
P0117:00	• Fixes the water temperature for the engine control at 40 °C {104 °F}, and for the idle air control at 80 °C {176 °F}. • Operates the cooling fan (high speed rotation). • Inhibits the fuel cut control during shift change.
P0118:00	• Fixes the water temperature for the engine control at 40 °C {104 °F}, and for the idle air control at 80 °C {176 °F}. • Operates the cooling fan (high speed rotation). • Inhibits the fuel cut control during shift change.
