ENGINE CONTROL SYSTEM [SKYACTIV-D 2.2]

id0140z7139900

Outline

• Two-step boost control has been adopted, realizing low emission, low fuel consumption, high torque, and high response.

― Compressor bypass solenoid valve adopted

― Regulating solenoid valve adopted

― Wastegate solenoid valve adopted

• Intake stroke EGR using double exhaust valve actuation system (IDEVA) control has been adopted, realizing combustion stability at cold temperatures.

― OCV adopted

• Glow control has been adopted to improve engine startability and diesel particulate filter regeneration performance.

― Glow control module adopted

• Engine hydraulic pressure switching control has been adopted reducing engine load.

― Engine oil solenoid valve adopted

• DC-DC converter control has been adopted for improved power supply stability. (Without i-ELOOP)

― DC-DC converter adopted

• With the adoption of the i-ELOOP, charging efficiency during deceleration is improved. (With i-ELOOP)

― DC-DC converter (i-ELOOP) adopted

• Generator output control adopted, fuel economy/idling stability improved.

― Current sensor adopted

Structural View

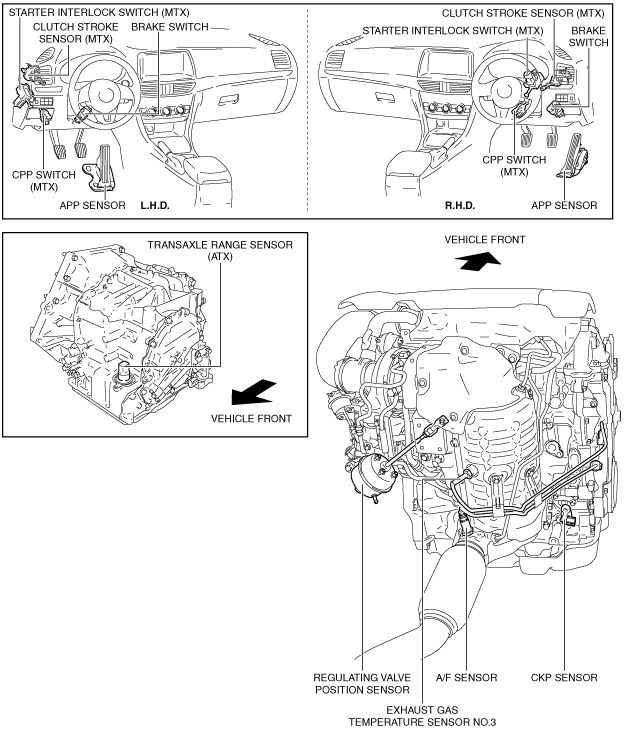

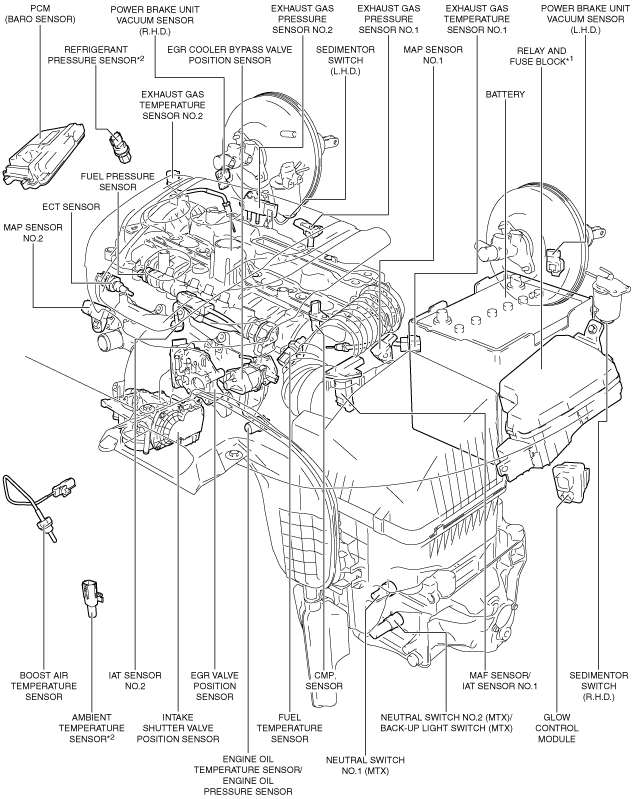

Input device

am6zzn00001869

*1 :Check connector, IG1 relay

*2 :With air conditioner

am6zzn00001870

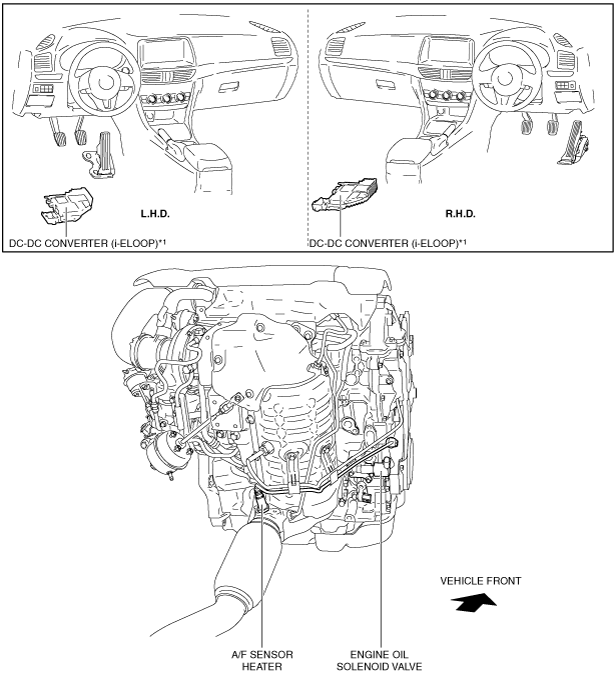

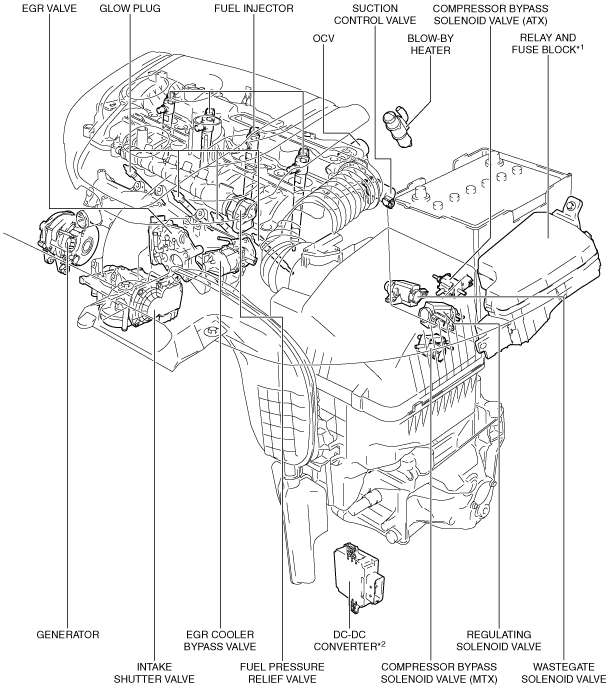

Output device

am6zzn00001871

*1 :Main relay, blow-by heater relay, starter relay, A/C relay, cooling fan relay No.1, cooling fan relay No.2

*2 :Without i-ELOOP

am6zzn00001872

*1 :With i-ELOOP

System Diagram

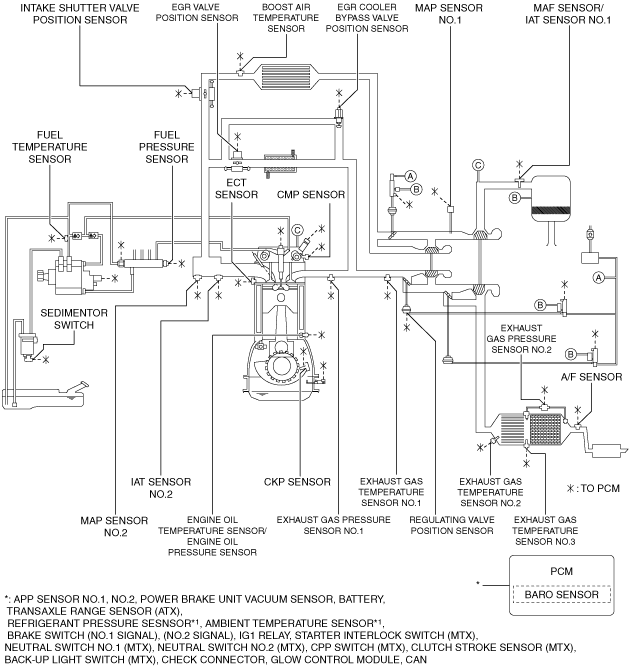

Input device

am6zzn00001873

*1 :With air conditioner

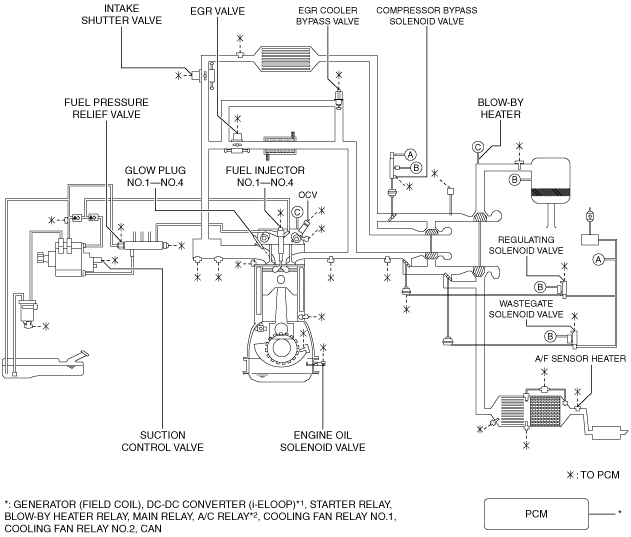

Output device

am6zzn00001874

*1 :With i-ELOOP

*2 :With air conditioner

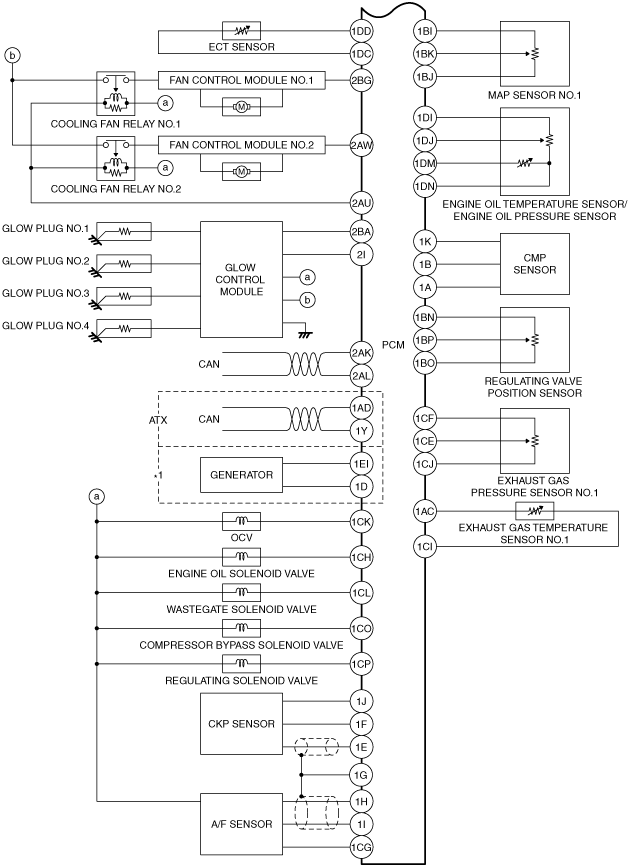

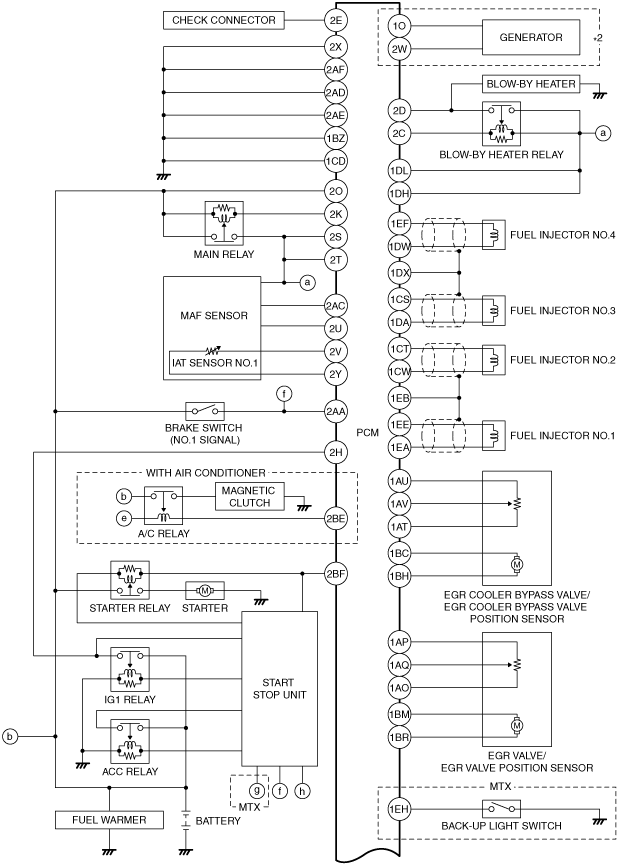

System Wiring Diagram

am6zzn00002777

am6zzn00002778

am6zzn00002779

*1 :Without i-ELOOP

*2 :With i-ELOOP

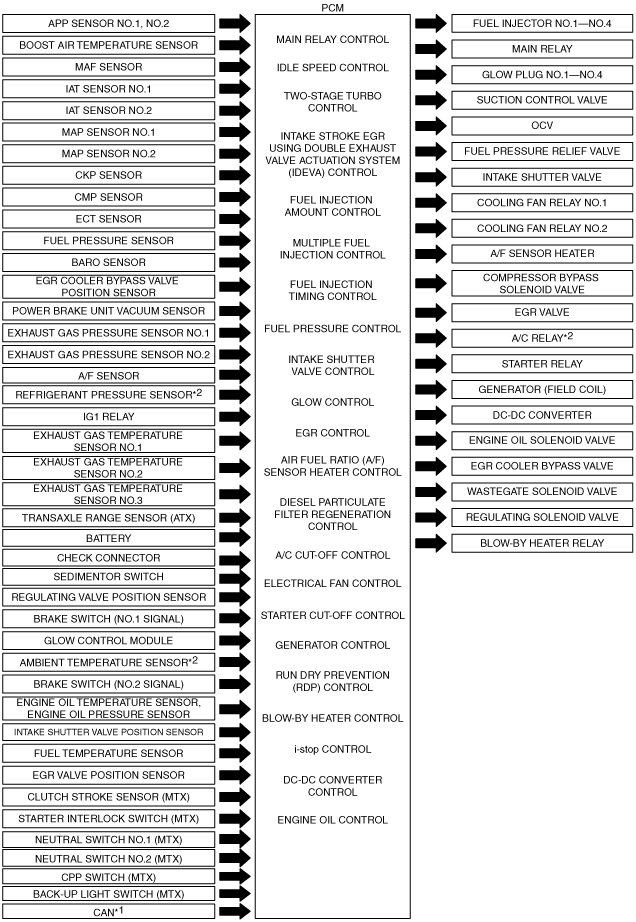

Block Diagram

am6zzn00001875

*1 :TCM (ATX), DSC HU/CM, front body control module (FBCM), rear body control module (RBCM), instrument cluster, start stop unit, EPS control module

*2 :With air conditioner

Relation Chart

×: Applicable

Item	MAIN RELAY CONTROL	IDLE SPEED CONTROL	TWO-STAGE TURBO CONTROL	IDEVA^*1 CONTROL	FUEL INJECTION AMOUNT CONTROL	MULTIPLE FUEL INJECTION CONTROL	FUEL INJECTION TIMING CONTROL	FUEL PRESSURE CONTROL	INTAKE SHUTTER VALVE CONTROL	GLOW CONTROL	EGR CONTROL
Input device
Check connector
IG1 relay	×		×						×	×
Brake switch (No.1 signal)			×
Brake switch (No.2 signal)
Sedimentor switch
Glow control module										×
MAP sensor No.2		×	×		×	×	×		×	×	×
IAT sensor No.1					×	×	×		×		×
MAP sensor No.1			×
ECT sensor		×	×	×	×	×	×	×	×	×	×
Fuel temperature sensor					×			×
IAT sensor No.2		×	×		×	×	×		×	×	×
Boost air temperature sensor			×								×
APP sensor No.1,No.2		×	×		×	×	×	×	×		×
MAF sensor			×		×	×	×		×		×
Fuel pressure sensor					×			×
Intake shutter valve position sensor			×						×		×
EGR cooler bypass valve position sensor			×						×		×
EGR valve position sensor			×						×		×
Exhaust gas pressure sensor No.2		×
BARO sensor		×	×		×	×	×	×	×	×	×
Battery			×							×
Refrigerant pressure sensor^*3		×
Exhaust gas pressure sensor No.1		×	×						×		×
Exhaust gas temperature sensor No.1			×						×		×
Exhaust gas temperature sensor No.2					×	×	×
Exhaust gas temperature sensor No.3
Engine oil temperature sensor		×		×
Engine oil pressure sensor		×		×
Regulating valve position sensor			×
Ambient temperature sensor^*3
A/F sensor					×	×	×		×		×
Power brake unit vacuum sensor			×
CKP sensor	×	×	×	×	×	×	×	×	×	×	×
CMP sensor					×	×	×	×	×		×
Transaxle range sensor (ATX)
Back-up light switch (MTX)
Neutral switch No.1 (MTX)		×	×		×	×	×		×		×
CPP switch (MTX)		×	×		×	×	×		×		×
Starter interlock switch (MTX)
Neutral switch No.2 (MTX)
Clutch stroke sensor (MTX)
CAN^*2		×	×		×	×	×		×	×	×
Output device
Intake shutter valve									×
EGR cooler bypass valve											×
EGR valve											×
Fuel pressure relief valve								×
Main relay	×
Regulating solenoid valve			×
Wastegate solenoid valve			×
Compressor bypass solenoid valve			×
A/F sensor heater
Starter relay
Generator (Field coil)		×
A/C relay^*3
Cooling fan relay No.1
Cooling fan relay No.2
Engine oil solenoid valve				×
Suction control valve								×
Fuel injector No.1—No.4		×			×	×	×
Blow-by heater relay
OCV				×
DC-DC converter
Glow plug No.1—No.4										×

*1 :Intake stroke EGR using double exhaust valve actuation system

*2 :TCM (ATX), DSC HU/CM, front body control module (FBCM), rear body control module (RBCM), instrument cluster, start stop unit, EPS control module

*3 :With air conditioner

×: Applicable

Item	AIR FUEL RATIO (A/F) SENSOR HEATER CONTROL	DIESEL PARTICULATE FILTER REGENERATION CONTROL	A/C CUT-OFF CONTROL	ELECTRICAL FAN CONTROL	STARTER CUT-OFF CONTROL	GENERATOR CONTROL	RUN DRY PREVENTION (RDP) CONTROL	BLOW-BY HEATER CONTROL	i-stop CONTROL	DC-DC CONVERTER CONTROL	ENGINE OIL CONTROL
Input device
Check connector		×	×
IG1 relay						×			×
Brake switch (No.1 signal)									×
Brake switch (No.2 signal)									×
Sedimentor switch
Glow control module
MAP sensor No.2		×
IAT sensor No.1		×
MAP sensor No.1		×
ECT sensor	×	×	×	×	×	×			×		×
Fuel temperature sensor
IAT sensor No.2	×	×				×			×
Boost air temperature sensor		×
APP sensor No.1,No.2		×	×			×			×
MAF sensor		×
Fuel pressure sensor		×
Intake shutter valve position sensor		×							×
EGR cooler bypass valve position sensor		×							×
EGR valve position sensor		×							×
Exhaust gas pressure sensor No.2		×
BARO sensor		×							×
Battery	×			×		×			×	×
Refrigerant pressure sensor^*2			×	×
Exhaust gas pressure sensor No.1		×
Exhaust gas temperature sensor No.1		×
Exhaust gas temperature sensor No.2		×
Exhaust gas temperature sensor No.3	×	×
Engine oil temperature sensor		×									×
Engine oil pressure sensor		×
Regulating valve position sensor		×							×
Ambient temperature sensor^*2								×
A/F sensor
Power brake unit vacuum sensor									×
CKP sensor	×	×	×		×	×		×	×		×
CMP sensor						×			×
Transaxle range sensor (ATX)
Back-up light switch (MTX)
Neutral switch No.1 (MTX)			×			×			×
CPP switch (MTX)						×			×
Starter interlock switch (MTX)									×
Neutral switch No.2 (MTX)									×
Clutch stroke sensor (MTX)
CAN^*1		×	×	×	×	×	×		×	×
Output device
Intake shutter valve		×							×
EGR cooler bypass valve		×							×
EGR valve		×							×
Fuel pressure relief valve									×
Main relay
Regulating solenoid valve		×							×
Wastegate solenoid valve		×							×
Compressor bypass solenoid valve		×							×
A/F sensor heater	×								×
Starter relay					×				×	×
Generator (Field coil)						×			×
A/C relay^*2			×
Cooling fan relay No.1				×
Cooling fan relay No.2				×
Engine oil solenoid valve		×									×
Suction control valve									×
Fuel injector No.1—No.4		×							×
Blow-by heater relay								×
OCV		×
DC-DC converter						×				×
Glow plug No.1—No.4		×

*1 :TCM (ATX), DSC HU/CM, front body control module (FBCM), rear body control module (RBCM), instrument cluster, start stop unit, EPS control module

*2 :With air conditioner
