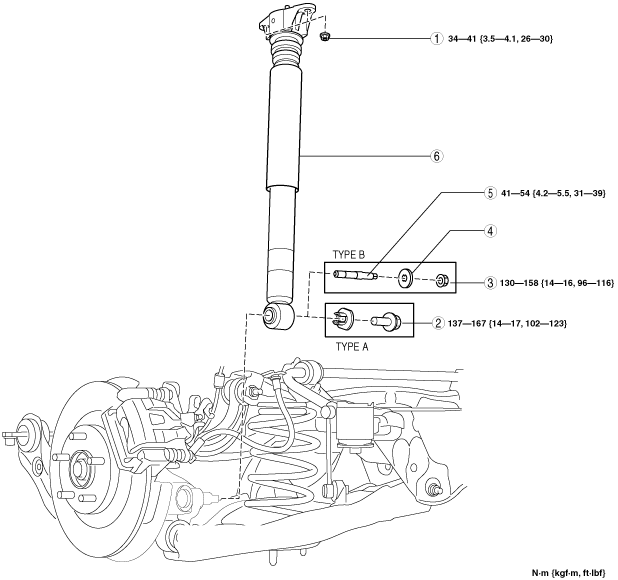

REAR SHOCK ABSORBER REMOVAL/INSTALLATION
id021400801300
1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
am6zzw00012319
|
|
1
|
Rear shock absorber upper nut
|
|
2
|
Rear shock absorber lower bolt (Type A)
|
|
3
|
Rear shock absorber lower nut (Type B)
|
|
4
|
Washer (Type B)
|
|
5
|
Stud bolt (Type B)
|
|
6
|
Rear shock absorber
|
Rear Shock Absorber Lower Bolt Installation Note
1. Insert the rear shock absorber bushing into the damper pin as shown in the following figure, engage the notches of the damper pin and the washer correctly, and install the rear shock absorber lower bolt.
am6zzw00009454
|
Rear Shock Absorber Upper Nut Installation Note
1. Lift up the rear lower arm using a jack and install the rear shock absorber upper nuts.
ac5wzw00002859
|
