PARKING BRAKE SWITCH INSPECTION

id041200800700

1.  Remove the upper panel. (See UPPER PANEL REMOVAL/INSTALLATION.)

2.  Disconnect the parking brake switch connector.

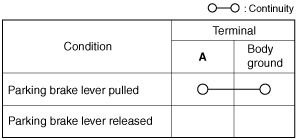

3.  Verify that the continuity is as indicated in the table.

ac5wzw00000237

•  If not as indicated in the table, replace the parking brake switch.

am5ezw00004333
