PLANETARY GEAR [FW6A-EL]

id0517h1351800


Purpose/Function

•  The planetary gear is a mechanism which shifts the drive force from the engine. The planetary gear consists of multiple gears which rotate individually while revolving. By controlling the individual rotation and revolving of the gears, the transaxle performs gear shifting at the optimum gear speed according to the driving conditions.

Construction

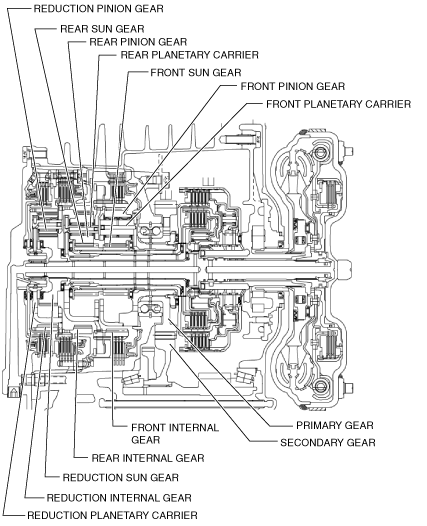

•  The planetary gear is positioned in the order of the front planetary gear, rear planetary gear, and reduction planetary gear from the torque converter side. The planetary gear is a single planetary gear type. For the component parts of each planetary gear, refer to the following figure.
am3uun00002450
•  The planetary gear is composed of the sun gear, pinion gear, planetary carrier, and internal gear as shown in the figure.
am3uun00002239
•  There are two types of pinion gear rotation, rotation (rotation) on an axis of the center for each pinion gear and rotation (revolution) on an axis of center for the planetary carrier. The planetary gear operates shifting function by switching the input, fixed, or output of the internal gear, pinion gear, and planetary carrier.
am3uun00002240
•  The relation of rotation speed of each element for the planetary gear set is generally indicated as follows:
(ZR+ ZS) NC= ZR NR+ ZS NS: (1)
Meaning of symbols
―  Z: Number of teeth
―  N: Rotation speed
―  Additional character R: Internal gear
―  Additional character S: Sun gear
―  Additional character C: Planetary carrier (pinion gear)

Number of teeth and symbols for each gear

Planetary gear unit

Number of teeth

Symbols
Front
Internal gear
97
ZRFr
Planetary carrier (part of pinion gear)
29
ZCFr
Sun gear
38
ZSFr
Rear
Internal gear
95
ZRRr
Planetary carrier (part of pinion gear)
27
ZCRr
Sun gear
40
ZSRr
Reduction
Internal gear
109
ZRRed
Planetary carrier (part of pinion gear)
21
ZCRed
Sun gear
68
ZSRed

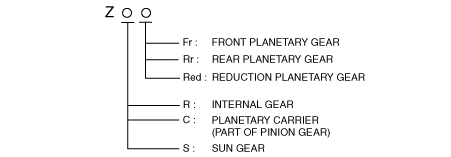

Meaning of symbols

am3uun00002334

Operation

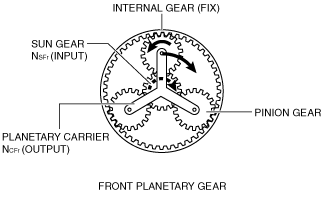

1GR

am3uun00002241

Rotation speed for each gear

Planetary gear unit

Front planetary gear
Internal gear
0 (Fix)
Planetary carrier
(part of pinion gear)
NCFr (Output)
Sun gear
NSFr (Input)

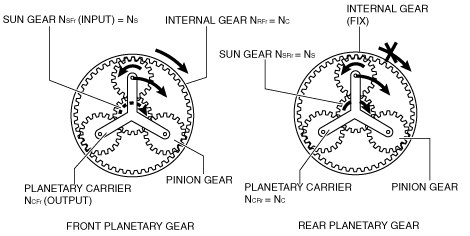

2GR

am3uun00002242

Rotation speed for each gear

Planetary gear unit

Front planetary gear

Rear planetary gear
Internal gear
NRFr=NC
0 (Fix)
Planetary carrier
(part of pinion gear)
NCFr (Output)
NCRr=Nc
Sun gear
NSFr (Input)=NS
NSRr=NS

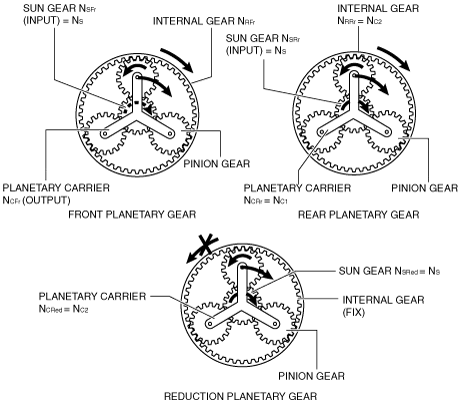

3GR

am3uun00002243

Rotation speed for each gear

Planetary gear unit

Front planetary gear

Rear planetary gear

Reduction
Internal gear
NRFr=NC1
NRRr=Nc2
0 (Fix)
Planetary carrier
(part of pinion gear)
NCFr (Output)
NCRr=Nc1
NCRed=Nc2
Sun gear
NSFr (Input)=NS
NSRr=NS
NSRed=NS

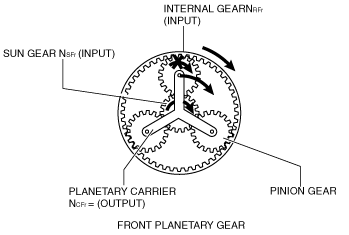

4GR

am3uun00002248

Rotation speed for each gear

Planetary gear unit

Front planetary gear
Internal gear
NRFr (Input)
Planetary carrier
(part of pinion gear)
NCFr (Output)
Sun gear
NSFr (Input)

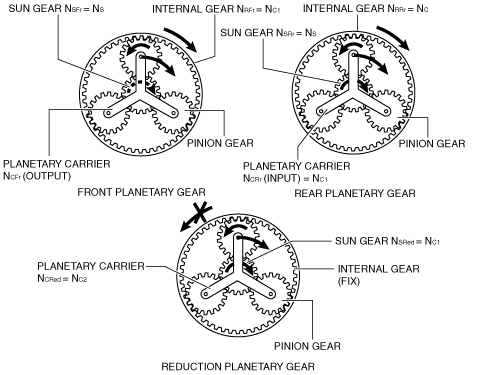

5GR

am3uun00002245

Rotation speed for each gear

Planetary gear unit

Front planetary gear

Rear planetary gear

Reduction
Internal gear
NRFr=NC1
NRRr=Nc2
0 (Fix)
Planetary carrier
(part of pinion gear)
NCFr (Output)
NCRr (Input)=Nc1
NCRed=Nc2
Sun gear
NSFr=NS
NSRr=NS
NSRed=Nc1

6GR

am3uun00002246

Rotation speed for each gear

Planetary gear unit

Front planetary gear

Rear planetary gear
Internal gear
NRFr=NC
0 (Fix)
Planetary carrier
(part of pinion gear)
NCFr (Output)
NCRr (Input)=Nc
Sun gear
NSFr=NS
NSRr=NS

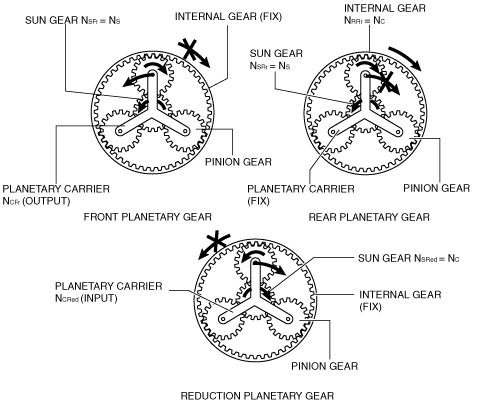

Reverse

am3uun00002247

Rotation speed for each gear

Planetary gear unit

Front planetary gear

Rear planetary gear

Reduction
Internal gear
NRFr (Fix)
NRRr=Nc
0 (Fix)
Planetary carrier
(part of pinion gear)
NCFr (Output)
NCRr (Fix)
NCRed=Nc
Sun gear
NSFr=NS
NSRr=NS
NSRed (Input)
