UP SWITCH [FW6A-EL]
id0517h1360400
Purpose/Function
• The up switch detects the shift up operation of the selector lever.

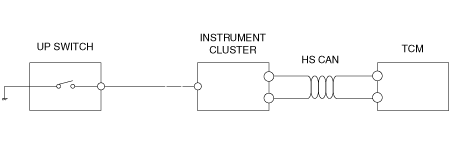

• The up switch signal is sent to the TCM via CAN and is used for manual shift control and engine-transaxle integration control.
Construction
• The up switch is installed to the selector lever.
• The up switch is an on/off type switch.
Operation
• When the selector lever is in the shift up position (+), the up switch contact point closes.
• Based on the opening and closing of the up switch contact point, the TCM detects that the shift up has been operated.
