•  Shift solenoid No.1 adjusts the hydraulic pressure in the low clutch circuit based on the current demand from the TCM according to the vehicle conditions.

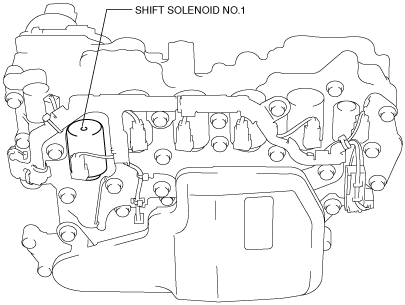

•  Shift solenoid No.1 is installed to the solenoid control valve body.

•  Shift solenoid No.1 is a normal closed-type linear solenoid.

am3uun00002355

•  Adjusts the low clutch pressure by increasing/decreasing the energization current to shift solenoid No.1 according to the signal from the TCM.
