•  Shift solenoid No.2 adjusts the hydraulic pressure in the 2-6 brake circuit based on the current demand from the TCM according to the vehicle conditions.

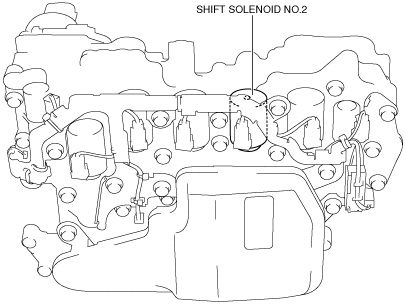

•  Shift solenoid No.2 is installed to the solenoid control valve body.

•  Shift solenoid No.2 is a normal closed-type linear solenoid.

am3uun00002426

•  Adjusts the 2-6 brake pressure by increasing/decreasing the energization current to shift solenoid No.2 according to the signal from the TCM.
