•  The pressure control solenoid adjusts the pressure control solenoid pressure and controls the line pressure based on the control signal from the TCM.

•  The pressure control solenoid is installed to the solenoid control valve body.

•  The pressure control solenoid is a normal open-type linear solenoid.

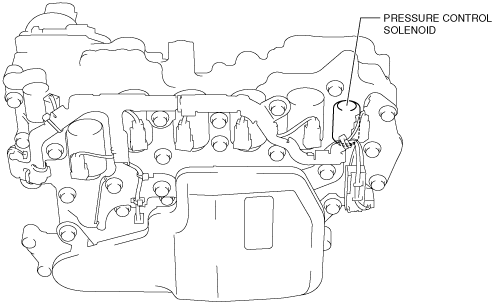

am3uun00002425

•  Adjusts the pressure control solenoid pressure by increasing/decreasing the energization current to the pressure control solenoid according to the signal from the TCM.
