AUTOMATIC TRANSAXLE WARNING LIGHT [GW6A-EL]

id0517i1361900

Purpose/Function

• The automatic transaxle warning light illuminates when the transaxle has malfunction.

Construction

• The automatic transaxle warning light is built into the instrument cluster.

am6zzn00002695

Operation

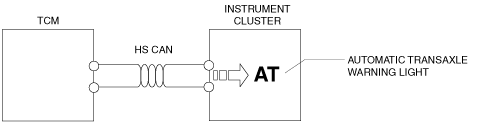

• If the transmission has a malfunction, the TCM sends an automatic transaxle warning light illumination request signal to the instrument cluster.

ac5uun00000652

• The TCM illuminates the automatic transaxle warning light for approx. 2 s after the ignition is switched ON to perform a bulb check of the automatic transaxle warning light. (Without TFT-LCD display)
