REFRIGERANT PRESSURE SENSOR [FULL-AUTO AIR CONDITIONER]
id0740a1126200
Purpose
• The refrigerant pressure sensor detects the refrigerant pressure in the refrigerant cycle.
Function

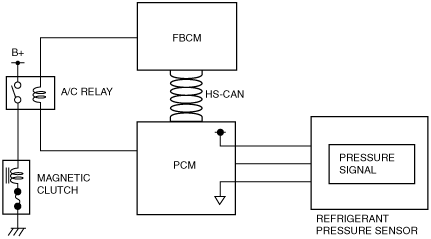

• The refrigerant pressure sensor converts the detected refrigerant pressure to an electric signal and sends it to the PCM.
Construction
• The refrigerant pressure sensor is installed on the cooler pipe.

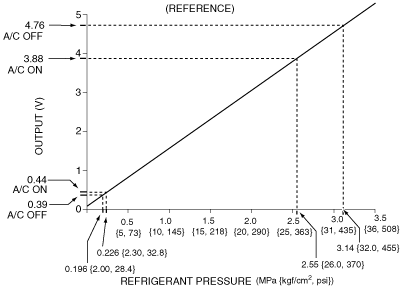

• A capacitance type refrigerant pressure sensor, which converts refrigerant pressure into a linear electric signal, has been adopted.
• Consists of a pressure detecting part and signal processing part.
• The pressure detecting part is a variable capacity condenser, which changes capacitance according to the pressure.
• The signal processing part detects the capacitance of pressure detecting part, converts it to voltage, then outputs it to the climate control unit.
Operation
Capacitance type
-
• There is a clearance between the movable ceramic diaphragm and the ceramic base, and each side has an electrode.
• When pressure is applied from the ceramic diaphragm side, the ceramic diaphragm deforms, and the clearance between the electrodes changes. As a result, capacitance is changed and pressure is detected.
Fail-safe
• Function not equipped.
