PTC HEATER [FULL-AUTO AIR CONDITIONER]

id0740a1701000

Purpose

• The PTC heater is a supplementary heater to temporarily improve the A/C unit heating performance for diesel engine vehicles which have good thermal efficiency.

Function

• The PTC heater generates heat based on the operation signal from the front body control module (FBCM) and warms the air passing through the A/C unit.

Construction

• The PTC heater consists of a film heater element, aluminum fin, and brass plate. Heat is generated by the flow of electrical current to the heater element.

ac5wzn00000731

Operation

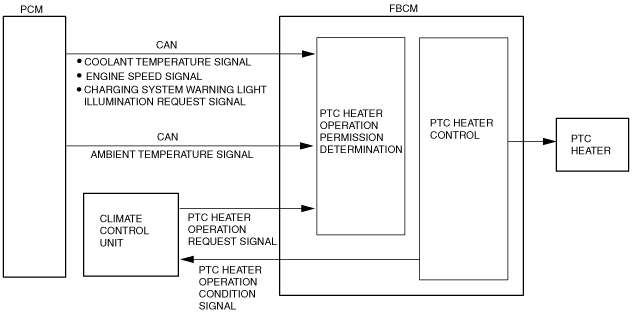

• The instrument cluster operates the PTC heater when all of the following conditions are met.

― During engine start (engine speed is 400 rpm or more)

― Ambient temperature signal is less than 20 °C {68 °F}

― Coolant temperature signal is less than 75 °C {167 °F}

― PTC heater operation request signal is received (See PTC Heater Operation Request Signal.)

― Charging system warning light illumination request signal is not received

ac5wzn00000732

• The front body control module (FBCM) compares the PTC heater output values calculated from the ambient temperature and the engine coolant temperature information, and determines the lower value as the PTC heater output. As a result, the PTC heater generation amount is controlled to switch gradually according to the ambient temperature and the engine coolant temperature.

am6zzn00002835

PTC heater output for ambient temperature

PTC heater output for engine coolant temperature

PTC heater output determination

Low

High

Ambient temperature side

High

Low

Engine coolant temperature side

PTC heater output for ambient temperature	PTC heater output for engine coolant temperature	PTC heater output determination
Low	High	Ambient temperature side
High	Low	Engine coolant temperature side

PTC Heater Operation Request Signal

• When all of the PTC heater on/off determinations are determined to be ON based on the opening angle of the air mix actuator, ambient temperature, and engine coolant temperature information with the blower on, the climate control unit outputs a PTC heater operation request signal to the front body control module (FBCM).

ac5wzn00000733

Fail-safe

• If each signal input from the PCM cannot be received or the charging system warning light illumination request signal is received, the front body control module (FBCM) inhibits the PTC heater operation.
