AIR INTAKE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER]

id0740a1801500

1.  Connect battery positive voltage to air intake actuator terminal B (or C), connect terminal C (or B) to ground, and then verify that the air intake actuator operates as shown in the table.

•  If the operation condition is not normal, replace the air intake actuator.

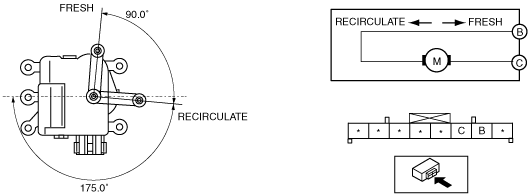

L.H.D.

ac5wzw00001846

Terminal		Air intake actuator operation
B	C
B+	Ground	FRESH → RECIRCULATE
Ground	B+	RECIRCULATE → FRESH

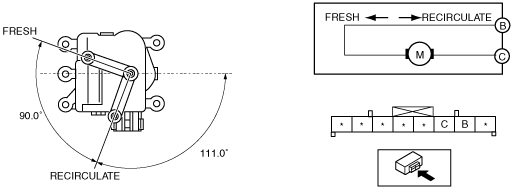

R.H.D.

ac5wzw00001847

Terminal		Air intake actuator operation
B	C
B+	Ground	RECIRCULATE → FRESH
Ground	B+	FRESH → RECIRCULATE
