•  The evaporator temperature sensor detects the airflow temperature passing through the evaporator.

•  The evaporator temperature sensor converts the detected temperature to an electric signal.

•  A thermistor-type evaporator temperature sensor has been adopted.

•  A fin-thermo-type sensor has been adopted to the sensor area of the evaporator temperature sensor which inserts between the evaporator fins.

•  The evaporator temperature sensor is installed to the A/C unit.

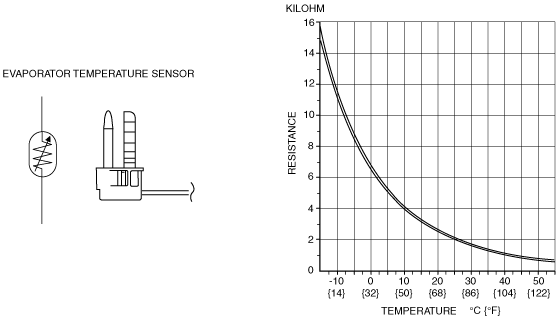

•  The thermistor changes the resistance according to the surrounding temperature.

•  The resistance decreases if the temperature increases, and conversely increases if the temperature decreases as shown in the figure.

•  Function not equipped.
