CLIMATE CONTROL UNIT INSPECTION [MANUAL AIR CONDITIONER]

id0740a2802200

1. Remove the climate control unit with the connector connected. (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)

2. Switch the ignition ON (engine off or on).

3. Connect the negative (-) lead of the tester to body ground.

4. By inserting the positive (+) lead of the tester into each climate control unit terminal, measure the voltage according to the terminal voltage table.

• If there is any malfunction, inspect the parts under “Inspection item (s)”.

― If the parts under “Inspection item (s)” are found to be normal (except for terminal E), replace the climate control unit.

― For terminal E, first try replacing the blower fan controller. If there is still any malfunction, replace the climate control unit.

Terminal Voltage Table (Reference)

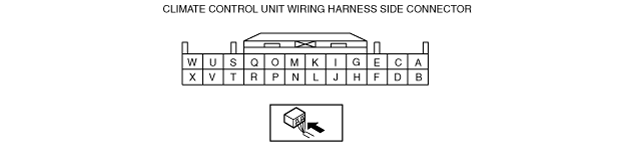

am6zzw00010739

Terminal

Signal name

Connected to

Measurement condition

Voltage (V)

Inspection item (s)

A

GND

Body ground

Under any condition

1.0 or less

•  Related wiring harness

B

B+

ROOM 15 A fuse

Under any condition

B+

•  Related wiring harness

•  ROOM 15 A fuse

C

—

—

—

—

—

D

IG2

Front body control module (FBCM)

Switch the ignition ON (engine off or on)

B+

•  Related wiring harness

•  Front body control module (FBCM)

Switch the ignition off

1.0 or less

E

Blower fan speed control

Blower fan controller

(See Blower Fan Speed Control Signal)

•  Related wiring harness

•  Blower fan controller

F

—

—

—

—

—

G

+5V

•  Air mix actuator

•  Airflow mode actuator

Under any condition

5

•  Related wiring harness

•  Air mix actuator

•  Airflow mode actuator

•  Climate control unit: terminal voltage (K)

H

Evaporator temperature sensor input

Evaporator temperature sensor

Compared with temperature detected by evaporator temperature sensor

Refer to graph 1

•  Related wiring harness

•  Evaporator temperature sensor

•  Climate control unit: terminal voltage (G)

I

—

—

—

—

—

J

Potentiometer input

Airflow mode actuator

VENT

4.3 or more

•  Related wiring harness

•  Airflow mode actuator

•  Climate control unit: terminal voltage (G)

BI-LEVEL

3.4

HEAT

2.5

HEAT/DEF

1.6

DEFROSTER

0.7 or less

K

Sensor GND

•  Air mix actuator

•  Airflow mode actuator

•  Evaporator temperature sensor

Under any condition

1.0 or less

•  Related wiring harness

•  Climate control unit: terminal voltage (G)

L

Potentiometer input

Air mix actuator

Set temperature at MAX HOT

4.3 or more

•  Related wiring harness

•  Air mix actuator

•  Climate control unit: terminal voltage (G)

Set temperature at MAX COLD

1.0 or less

M

—

—

—

—

—

N

Motor operation (VENT)

Airflow mode actuator

Moving towards VENT

B+

•  Related wiring harness

•  Airflow mode actuator

Moving towards DEFROSTER

1.0 or less

O

—

—

—

—

—

P

Motor operation (DEFROSTER)

Airflow mode actuator

Moving towards DEFROSTER

B+

•  Related wiring harness

•  Airflow mode actuator

Moving towards VENT

1.0 or less

Q

—

—

—

—

—

R

Motor operation (FRESH)

Air intake actuator

Moving towards RECIRCULATE

1.0 or less

•  Related wiring harness

•  Air intake actuator

Moving towards FRESH

B+

S

—

—

—

—

—

T

Motor operation (RECIRCULATE)

Air intake actuator

Moving towards RECIRCULATE

B+

•  Related wiring harness

•  Air intake actuator

Moving towards FRESH

1.0 or less

U

MS_CAN_H

CAN related module

Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.

•  Related wiring harness

V

Motor operation (COLD)

Air mix actuator

Moving towards HOT

1.0 or less

•  Related wiring harness

•  Air mix actuator

Moving towards COLD

B+

W

MS_CAN_L

CAN related module

Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.

•  Related wiring harness

X

Motor operation (HOT)

Air mix actuator

Moving towards HOT

B+

•  Related wiring harness

•  Air mix actuator

Moving towards COLD

1.0 or less

Terminal	Signal name	Connected to	Measurement condition	Voltage (V)	Inspection item (s)
A	GND	Body ground	Under any condition	1.0 or less	• Related wiring harness
B	B+	ROOM 15 A fuse	Under any condition	B+	• Related wiring harness • ROOM 15 A fuse
C	—	—	—	—	—
D	IG2	Front body control module (FBCM)	Switch the ignition ON (engine off or on)	B+	• Related wiring harness • Front body control module (FBCM)
Switch the ignition off	1.0 or less
E	Blower fan speed control	Blower fan controller	(See Blower Fan Speed Control Signal)	• Related wiring harness • Blower fan controller
F	—	—	—	—	—
G	+5V	• Air mix actuator • Airflow mode actuator	Under any condition	5	• Related wiring harness • Air mix actuator • Airflow mode actuator • Climate control unit: terminal voltage (K)
H	Evaporator temperature sensor input	Evaporator temperature sensor	Compared with temperature detected by evaporator temperature sensor	Refer to graph 1	• Related wiring harness • Evaporator temperature sensor • Climate control unit: terminal voltage (G)
I	—	—	—	—	—
J	Potentiometer input	Airflow mode actuator	VENT	4.3 or more	• Related wiring harness • Airflow mode actuator • Climate control unit: terminal voltage (G)
BI-LEVEL	3.4
HEAT	2.5
HEAT/DEF	1.6
DEFROSTER	0.7 or less
K	Sensor GND	• Air mix actuator • Airflow mode actuator • Evaporator temperature sensor	Under any condition	1.0 or less	• Related wiring harness • Climate control unit: terminal voltage (G)
L	Potentiometer input	Air mix actuator	Set temperature at MAX HOT	4.3 or more	• Related wiring harness • Air mix actuator • Climate control unit: terminal voltage (G)
Set temperature at MAX COLD	1.0 or less
M	—	—	—	—	—
N	Motor operation (VENT)	Airflow mode actuator	Moving towards VENT	B+	• Related wiring harness • Airflow mode actuator
Moving towards DEFROSTER	1.0 or less
O	—	—	—	—	—
P	Motor operation (DEFROSTER)	Airflow mode actuator	Moving towards DEFROSTER	B+	• Related wiring harness • Airflow mode actuator
Moving towards VENT	1.0 or less
Q	—	—	—	—	—
R	Motor operation (FRESH)	Air intake actuator	Moving towards RECIRCULATE	1.0 or less	• Related wiring harness • Air intake actuator
Moving towards FRESH	B+
S	—	—	—	—	—
T	Motor operation (RECIRCULATE)	Air intake actuator	Moving towards RECIRCULATE	B+	• Related wiring harness • Air intake actuator
Moving towards FRESH	1.0 or less
U	MS_CAN_H	CAN related module	Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.	• Related wiring harness
V	Motor operation (COLD)	Air mix actuator	Moving towards HOT	1.0 or less	• Related wiring harness • Air mix actuator
Moving towards COLD	B+
W	MS_CAN_L	CAN related module	Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.	• Related wiring harness
X	Motor operation (HOT)	Air mix actuator	Moving towards HOT	B+	• Related wiring harness • Air mix actuator
Moving towards COLD	1.0 or less

—

Blower Fan Speed Control Signal

Fan stopped

aatjjw00013135

Climate control unit terminal

• E(+)—body ground(-)

Oscilloscope setting

• 5 V/DIV (Y), 1 ms/DIV (X), DC range

Vehicle condition

• Switch the ignition ON (engine off or on)

Manual 1st

aatjjw00013136

Climate control unit terminal

• E(+)—body ground(-)

Oscilloscope setting

• 5 V/DIV (Y), 1 ms/DIV (X), DC range

Vehicle condition

• Switch the ignition ON (engine off or on)

• Airflow mode: VENT

• Air intake mode: RECIRCULATE

Manual 3rd

am6zzw00015333

Climate control unit terminal

• E(+)—body ground(-)

Oscilloscope setting

• 5 V/DIV (Y), 1 ms/DIV (X), DC range

Vehicle condition

• Switch the ignition ON (engine off or on)

• Airflow mode: VENT

• Air intake mode: RECIRCULATE

Manual 7th

aatjjw00013138

Climate control unit terminal

• E(+)—body ground(-)

Oscilloscope setting

• 5 V/DIV (Y), 1 ms/DIV (X), DC range

Vehicle condition

• Switch the ignition ON (engine off or on)

• Airflow mode: VENT

• Air intake mode: RECIRCULATE
