AIR BAG SYSTEM

id081000500100

Outline

• The air bag system is a device that supplements the passenger restraint function of the seat belts. The air bag system will not have the designed effect if the seat belts are not worn properly.

• The air bag system is composed of the following parts:

Item

Outline

SAS control module

•  A yaw rate sensor and a low-G sensor has been added.

•  Recognizes actually equipped air bag module or pre-tensioner seat belt based on module configuration.

Crash zone sensor

•  Detects degree of impact, converts to an electrical signal, and sends the signal to the SAS control module.

Side air bag sensor

Driver-side air bag module

•  Adopted to improve safety in frontal collisions.

Passenger-side air bag module

Side air bag module

•  Chest-protection type side air bag module is used in accordance with the adoption of the curtain air bag module.

Curtain air bag module

•  Adopted to improve safety in lateral collisions.

Pre-tensioner seat belt

•  Gear-type pre-tensioner seat belt has been adopted.

PAD switch^*1

•  PAD switch has been adopted enabling optional deactivation of passenger-side air bag module, passenger-side side air bag module, and passenger-side pre-tensioner seat belt.

PAD indicator^*1

•  PAD indicator has been adopted to inform driver and front passenger of the deployment standby status of the passenger-side air bag module, passenger-side side air bag module, and passenger-side pre-tensioner seat belt.

Air bag system warning light

•  LED has been adopted.

Item	Outline
SAS control module	• A yaw rate sensor and a low-G sensor has been added. • Recognizes actually equipped air bag module or pre-tensioner seat belt based on module configuration.
Crash zone sensor	• Detects degree of impact, converts to an electrical signal, and sends the signal to the SAS control module.
Side air bag sensor
Driver-side air bag module	• Adopted to improve safety in frontal collisions.
Passenger-side air bag module
Side air bag module	• Chest-protection type side air bag module is used in accordance with the adoption of the curtain air bag module.
Curtain air bag module	• Adopted to improve safety in lateral collisions.
Pre-tensioner seat belt	• Gear-type pre-tensioner seat belt has been adopted.
PAD switch^*1	• PAD switch has been adopted enabling optional deactivation of passenger-side air bag module, passenger-side side air bag module, and passenger-side pre-tensioner seat belt.
PAD indicator^*1	• PAD indicator has been adopted to inform driver and front passenger of the deployment standby status of the passenger-side air bag module, passenger-side side air bag module, and passenger-side pre-tensioner seat belt.
Air bag system warning light	• LED has been adopted.

*1 :With PAD switch

Structural View

am6zzn00002602

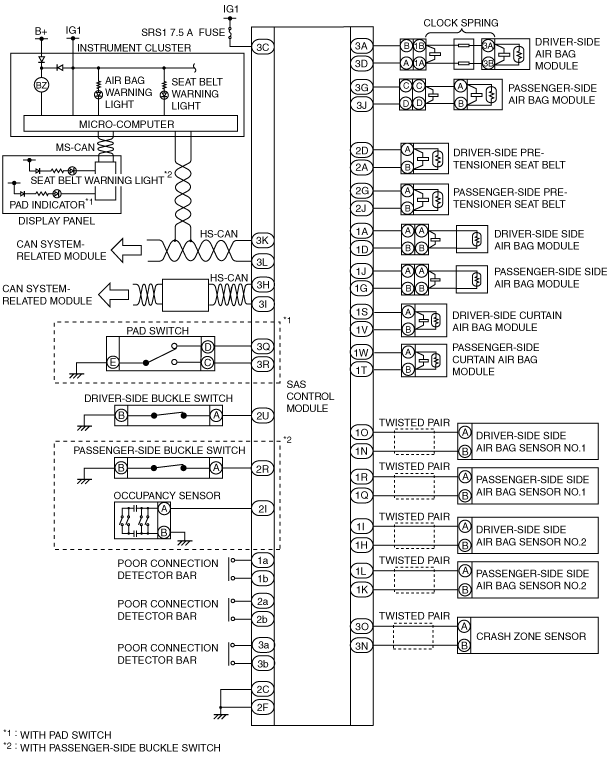

Wiring Diagram

am6zzn00002603
