CLOCK SPRING INSPECTION

id081000802200

1.  Switch the ignition to off.

2.  Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

3.  Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

4.  Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

5.  Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)

6.  Remove the clock spring. (See CLOCK SPRING REMOVAL/INSTALLATION.)

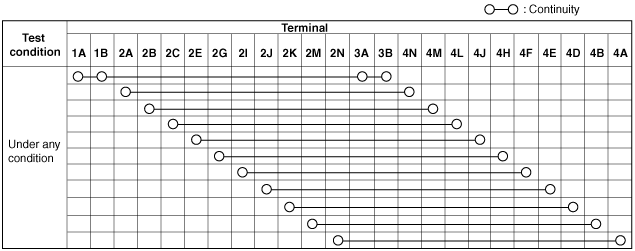

7.  Verify that the continuity is as indicated in the table.

•  If not as indicated in the table, replace the clock spring.

Note

•  When the vehicle-side connector for the clock spring is disconnected, terminals 1A, 1B are shorted to prevent unexpected operation (deployment) of the air bag module.

ac5wzw00002049

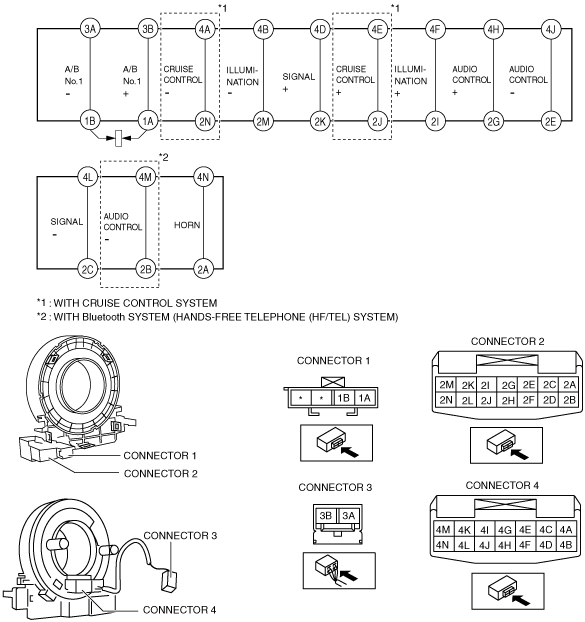

ac5wzw00002050
