DOOR ADJUSTMENT

id091100521100

1. Measure the gap and height difference between the door and the body.

2. Loosen the door hinge installation bolts and adjust the door.

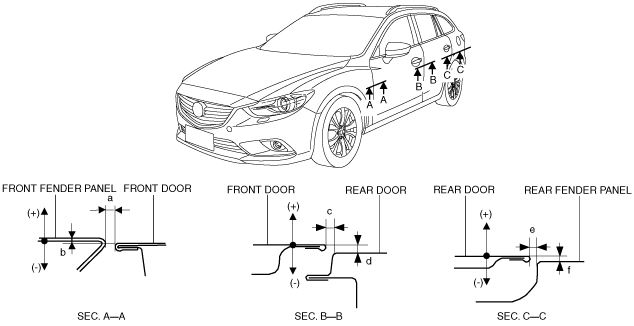

ac5uuw00000099

Standard clearance

a: 2.5―4.5 mm {0.10―0.17 in}

b: -0.5―1.5 mm {-0.01―0.05 in}

c: 2.5―4.5 mm {0.10―0.17 in}

d: -0.5―1.5 mm {-0.01―0.05 in}

e: 2.5―4.5 mm {0.10―0.17 in}

f: -1.0―1.0 mm {-0.039―0.039 in}

3. Tighten the door hinge installation bolts. (See FRONT DOOR REMOVAL/INSTALLATION.) (See REAR DOOR REMOVAL/INSTALLATION.)

4. If the door does not open/close smoothly, adjust it by loosening the door lock striker installation screw. (See DOOR LOCK STRIKER REMOVAL/INSTALLATION.)

5. Spray or pour water on the door and surrounding area using a hose or high pressure water pressure car wash and verify that there is no water leakage.
