LIFTGATE ADJUSTMENT

id091100521400

1. Measure the gap and height difference between the liftgate and the body.

2. Loosen the liftgate hinge installation bolts and adjust the liftgate.

am6zzw00011231

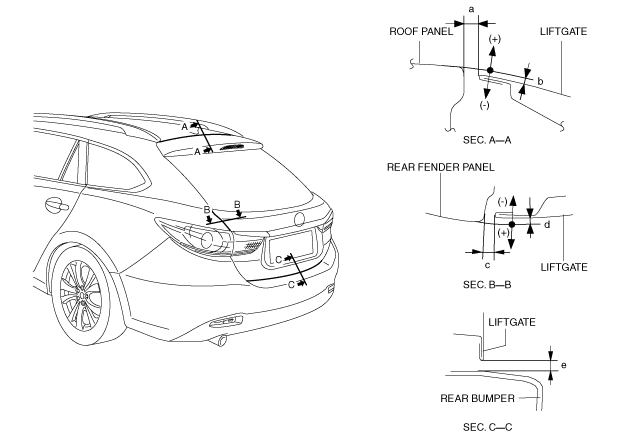

Standard clearance

a: 5.5―7.5 mm {0.22―0.29 in}

b: -1.9―0.1 mm {-0.074―0.003 in}

c: 2.5―6.5 mm {0.10―0.25 in}

d: -2.7―1.3 mm {-0.10―0.05 in}

e: 4.0―8.0 mm {0.16―0.31 in}

3. Tighten the liftgate hinge installation bolts. (See LIFTGATE REMOVAL/INSTALLATION.)

4. If the liftgate does not open/close smoothly, adjust it by loosening the liftgate lock striker installation screw. (See LIFTGATE LOCK STRIKER REMOVAL/INSTALLATION.)

5. Spray or pour water on the door and surrounding area using a hose or high pressure water pressure car wash and verify that there is no water leakage.
