POWER OUTER MIRROR SWITCH INSPECTION

id091200003400


With Retract/return Function

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the power outer mirror switch. (See POWER OUTER MIRROR SWITCH REMOVAL/INSTALLATION.)

3.  Verify that the continuity between the power outer mirror switch terminals is as indicated in the table.

•  If not as indicated in the table, replace the power outer mirror switch. (See POWER OUTER MIRROR SWITCH REMOVAL/INSTALLATION.)

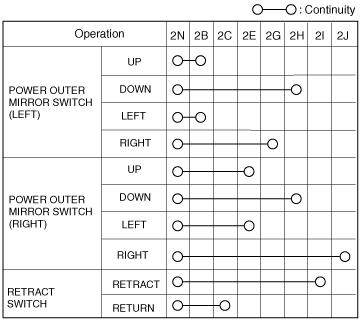

am6zzw00011642


Without exterior open/close function

1.
am6zzw00011643

2.  Connect the power outer mirror connector.

3.  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

4.  Measure the voltage at each terminal.

•  If the voltage is not as specified in the terminal voltage table, inspect the parts under Inspection item (s) and related wiring harnesses.
―  If the system does not work normally even though the inspection items or related wiring harnesses do not have any malfunction, replace the power window main switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)

Terminal

Signal name

Connected to

Measurement condition

Voltage (V)

Inspection item (s)
2B
Right/down signal
Power outer mirror (LH)
While outer mirror glass (LH) is moving downward or towards right
B+
•  Related wiring harness
•  Power outer mirror
Other
1.0 or less
2C
Retract signal
Power outer mirror (LH/RH)
While power outer mirror (LH/RH) is retracting
B+
•  Related wiring harness
•  Power outer mirror
Other
1.0 or less
2E
Right/down signal
Power outer mirror (RH)
While outer mirror glass (RH) is moving downward or towards right
B+
•  Related wiring harness
•  Power outer mirror
Other
1.0 or less
2G
Left signal
Power outer mirror (LH)
While outer mirror glass (LH) is moving towards left
B+
•  Related wiring harness
•  Power outer mirror
Other
1.0 or less
2H
Up signal
Power outer mirror (LH/RH)
While outer mirror glass (LH/RH) is moving upward
B+
•  Related wiring harness
•  Power outer mirror
Other
1.0 or less
2I
Return signal
Power outer mirror (LH/RH)
While power outer mirror (LH/RH) is returning
B+
•  Related wiring harness
•  Power outer mirror
Other
1.0 or less
2J
Left signal
Power outer mirror (RH)
While outer mirror glass (RH) is moving towards left
B+
•  Related wiring harness
•  Power outer mirror
Other
1.0 or less
2N
GND
Body ground
Under any condition
1.0 or less
•  Related wiring harness


With exterior open/close function

1.

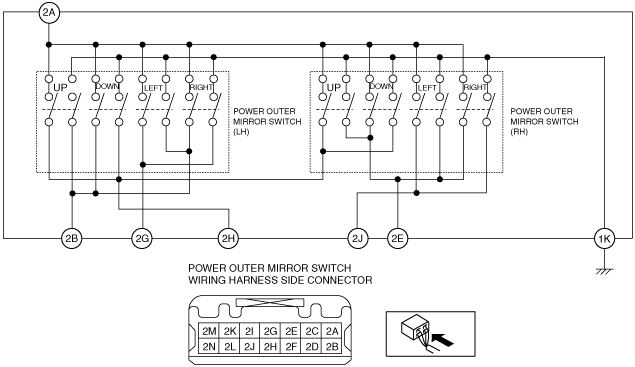

am6zzw00012078

2.  Connect the power outer mirror connector.

3.  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)

4.  Measure the voltage at each terminal.

•  If the voltage is not as specified in the terminal voltage table, inspect the parts under Inspection item (s) and related wiring harnesses.
―  If the system does not work normally even though the inspection items or related wiring harnesses do not have any malfunction, replace the power window main switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)

Terminal

Signal name

Connected to

Measurement condition

Voltage (V)

Inspection item (s)
2A
Retract signal
Power outer mirror (LH/RH)
While power outer mirror (LH/RH) is retracting
B+
•  Related wiring harness
•  Power outer mirror
Other
1.0 or less
2B
Right/down signal
Power outer mirror (LH)
While outer mirror glass (LH) is moving downward or towards right
B+
•  Related wiring harness
•  Power outer mirror
Other
1.0 or less
2C
Up signal
Power outer mirror (LH/RH)
While outer mirror glass (LH/RH) is moving upward
B+
•  Related wiring harness
•  Power outer mirror
Other
1.0 or less
2E
Right/down signal
Power outer mirror (RH)
While outer mirror glass (RH) is moving downward or towards right
B+
•  Related wiring harness
•  Power outer mirror
Other
1.0 or less
2G
Left signal
Power outer mirror (RH)
While outer mirror glass (RH) is moving towards left
B+
•  Related wiring harness
•  Power outer mirror
Other
1.0 or less
2H
Left signal
Power outer mirror (LH)
While outer mirror glass (LH) is moving towards left
B+
•  Related wiring harness
•  Power outer mirror
Other
1.0 or less
2I
Return signal
Power outer mirror (LH/RH)
While power outer mirror (LH/RH) is returning
B+
•  Related wiring harness
•  Power outer mirror
Other
1.0 or less
2N
GND
Body ground
Under any condition
1.0 or less
•  Related wiring harness


Without Retract/return Function

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the power outer mirror switch. (See POWER OUTER MIRROR SWITCH REMOVAL/INSTALLATION.)

3.  Verify that the continuity between the power outer mirror switch terminals is as indicated in the table.

•  If not as indicated in the table, replace the power outer mirror switch. (See POWER OUTER MIRROR SWITCH REMOVAL/INSTALLATION.)

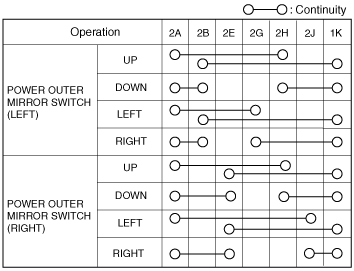

am6zzw00011644
am6zzw00011645
