POWER WINDOW MAIN SWITCH
id091200012300
Purpose
• Remote control of door glass open/close and power outer mirror adjustment and retract/return are possible with occupant seated in the cabin (with retractable power outer mirrors).
• Remote control of door glass open/close and power outer mirror adjustment are possible with occupant seated in the cabin (without retractable power outer mirrors).
Function
Power window main switch
-
• Manual
-
― When the power window main switch is operated for manual open/close operation, it sends a manual open/close signal to the P/W CM (power window control module).
-
• Auto
-
― When the power window main switch is operated for auto open/close operation, it sends an auto open/close signal to the P/W CM.
-
• Power cut
-
― When the power-cut switch is pressed (contact point: Open), operation of the power window sub-switches for the front and rear passenger seats is disabled.
Power outer mirror switch
-
• Up-down/left-right adjustment
-
― The power outer mirror switch switches the contact point according to the switch operation. As a result, the circuit to the up-down/left-right adjustment motor is switched.
-
• Retract/Return
-
― The power outer mirror switch switches the contact point according to the switch operation. As a result, the circuit to the retract/return motor is switched.
-
• Left/right selection
-
― The power outer mirror switch is used to select the side on which adjustment of the power outer mirror glass is desired.
Construction

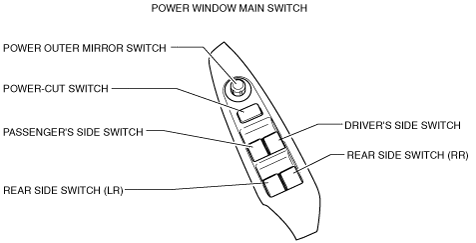

• The power window main switch consists of the following parts:
-
― Driver's side switch
― Front passenger's side switch
― Rear passenger switch (LR)
― Rear passenger switch (RR)
― Power-cut switch
― Power outer mirror switch
-
• Up/down/left/right adjustment
• Retract/return
• Left/right selection
• The power window main switch has a built-in P/W CM, and controls the auto reverse pinch protection, IG OFF timer, and IG OFF timer cancel functions.
L.H.D.
R.H.D.
Operation
Power window main switch

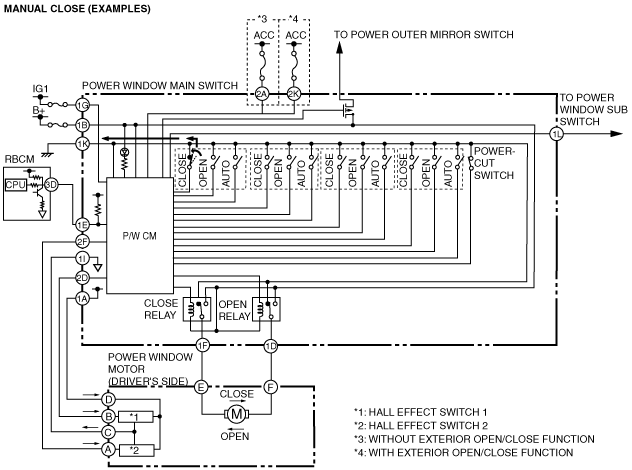

1. Contact points for door glass opening/closing can be changed by operating the power window main switch. The P/W CM monitors the operation conditions of the driver's side switch and power window motor.
Power-cut switch
1. When the power-cut switch of the power window main switch is pressed (contact point: Open), current from each power window sub-switch is interrupted.
Power outer mirror switch

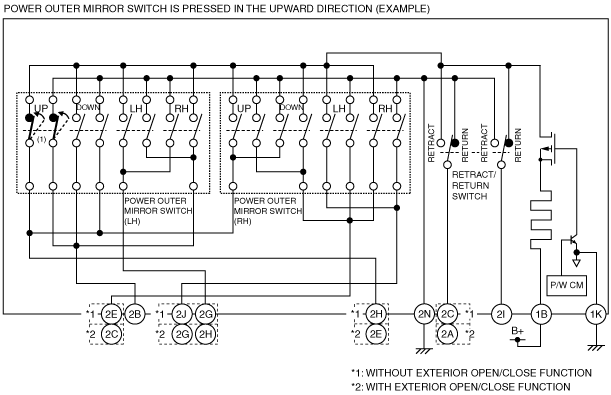

1. Up/down/left/right contact points for the power outer mirror can be switched by operating the power outer mirror switch.
With retract/return function

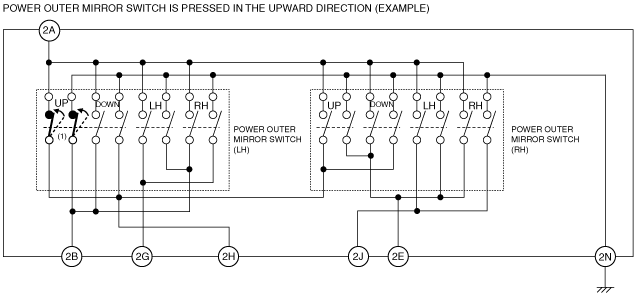

Without retract/return function
Retract/Return switch
1. Contact points for power outer mirror retract/return can be switched by operating the power outer mirror switch.
Fail-safe
• Function not equipped.
