REAR SEAT
id091300101100
Purpose, Function
• The 6:4 split-type of rear seat has been adopted.
• A top tether anchor and ISO FIX anchor have been adopted to enable securing of child-restraint seats on the rear seat.
• The following functions have been adopted for the rear seat to protect passengers during a collision or emergency braking.
-
― Prevention of trunk compartment cargo from forward intrusion
• Easy fold-down rear seat back has been adopted which enlarges occupancy space using a one-touch operation. (WGN)
Construction, Operation
• The child-restraint seat anchors include a top tether anchor and ISO FIX anchor to secure the child-restrain seats and prevent them from deviating or falling off the rear seat.

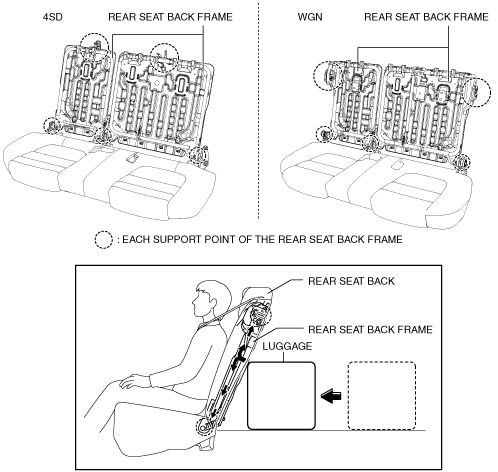

• During a collision, a moving load is stopped by the reinforced rear seat back frame and each support point to prevent the rear seat back from collapsing forward and the luggage intruding into the cabin.
• The easy fold-down seats can be folded down by pressing the push knobs or operating the remote handle lever to enlarge the cargo space. (WGN)
Fail-safe
• Function not equipped.
