POWER SEAT SYSTEM

id091300262000


Outline

•  The power seat system drives the electric motor, operates the front seat safely, and changes the driving posture to suit the occupant by operating the power seat switch.
•  8 way power seats have been adopted on the driver's seat.
•  4 way power seats have been adopted on the passenger’s seat.

Function

•  The 8 way power seats are equipped with the following functions:
―  Slide mechanism
―  Recliner mechanism
―  Lift mechanism
―  Tilt mechanism
―  Lumbar support mechanism
•  The 4 way power seats are equipped with the following functions:
―  Slide mechanism
―  Recliner mechanism

Slide mechanism

•  The sliding function adjusts the front and back positions of the front seat.
ac5wzn00001875


Recliner mechanism

•  The recliner function adjusts the angle of the front seat back.
ac5wzn00001876


Front tilt mechanism

•  The front tilt function adjusts the height of the front part of the front seat cushion.
ac5wzn00001877


Lift mechanism

•  The lift function adjusts the height of the front seat.
ac5wzn00001878


Lumbar support mechanism

•  The lumbar support function adjusts the bulge amount of the abdominal area of the front seat back.
ac5wzn00001879

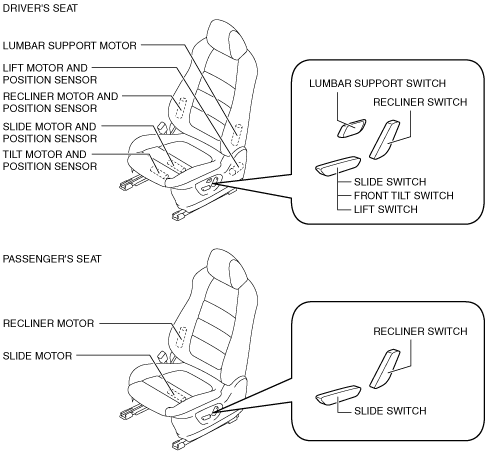

Structural View

am6zzn00002883

System Diagram

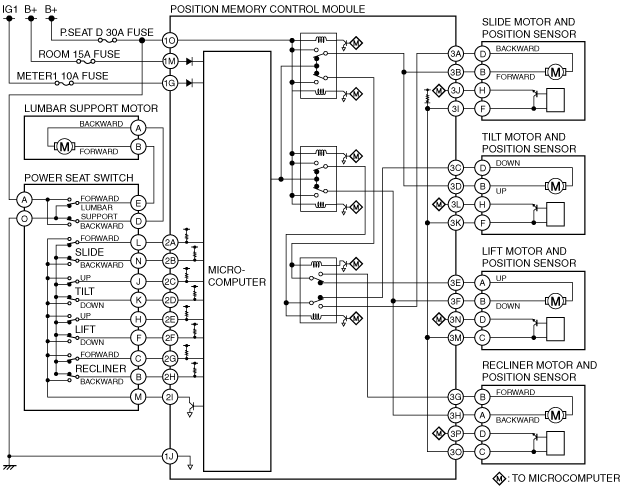

Driver’s seat

L.H.D.

am6zzn00002884

R.H.D.

am6zzn00002943


Passenger’s seat

L.H.D.

am6zzn00002885

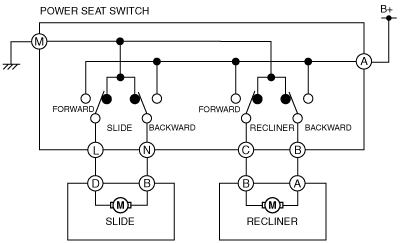

R.H.D.

am6zzn00002944


Operation

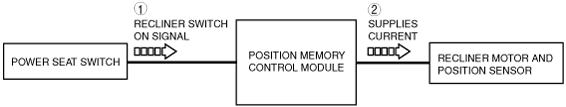

Recliner operation (example: forward recline operation)

Driver’s seat
1.  When the recliner switch of the power seat switch is operated forward, the recliner switch ON signal is input the position memory control module.
2.  When the position memory control module receives the recliner switch ON signal, power is supplied to the recliner motor and position sensor.
3.  When current flows to the recliner motor for forward motion, the motor drives to tilt the front seat back forward.
am6zzn00002886

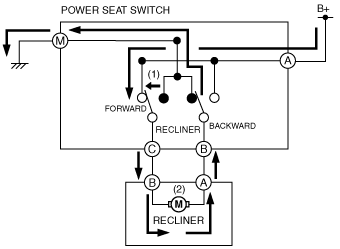

Passenger’s seat
1.  When the recliner switch is operated (1) forward, current from the battery flows (2) to the recliner motor.
2.  When current flows to the recliner motor for forward motion, the motor drives to tilt the front seat back forward.
am6zzn00002887


Lift operation (example: lift up operation)

1.  When the lift switch of the power seat switch is operated up, the lift switch ON signal is input the position memory control module.

2.  When the position memory control module receives the lift switch ON signal, power is supplied to the lift motor and position sensor.

3.  When current flows to the lift motor for lift-up motion, the motor drives to set the position of the front seat higher.

am6zzn00002888

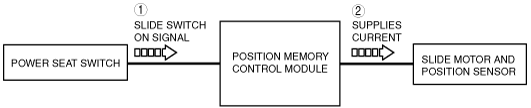

Slide operation (example: forward slide operation)

Driver’s seat
1.  When the slide switch of the power seat switch is operated forward, the slide switch ON signal is input the position memory control module.
2.  When the position memory control module receives the slide switch ON signal, power is supplied to the slide motor and position sensor.
3.  When current flows to the slide motor and position sensor for forward motion, the motor drives to slide the front seat forward.
am6zzn00002889

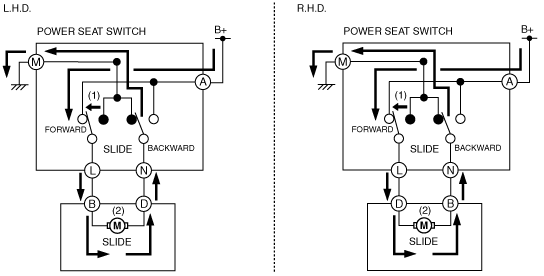

Passenger’s seat
1.  When the sliding switch is operated (1) forward, current from the battery flows (2) to the sliding motor.
2.  When current flows to the recliner motor for forward motion, the motor drives to tilt the front seat back forward.
am6zzn00002890

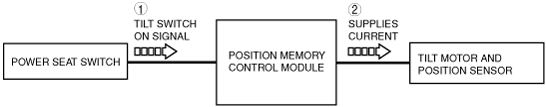

Tilt operation (example: tilt up operation)

1.  When the tilt switch of the power seat switch is operated up, the tilt switch ON signal is input the position memory control module.

2.  When the position memory control module receives the tilt switch ON signal, power is supplied to the tilt motor and position sensor.

3.  When current flows to the tilt motor and position sensor for tilt-up motion, the motor drives to set the position of the front part of the front seat cushion higher.

am6zzn00002891

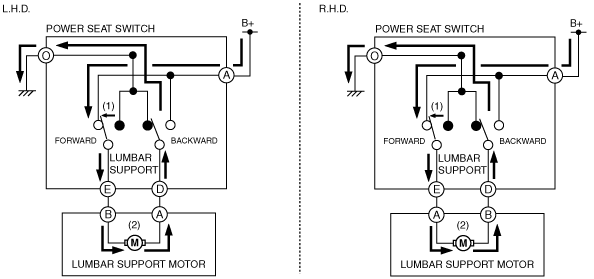

Lumbar support operation (example: forward operation)

1.  When the lumbar support switch is operated (1) forward, current from the battery flows (2) to the lumbar support motor.

2.  When current flows to the lumbar support motor for forward motion, the motor drives to set the bulge amount of the abdominal area of the front seat back.

am6zzn00002892


Fail-safe

•  Function not equipped.
