REAR SEAT CENTER ARMREST REMOVAL/INSTALLATION

id091300812200

1.  Remove the screw.

am6zzw00012386

2.  Remove the center armrest hinge cover in the direction of the arrow shown in the figure.

3.  Remove the bolt.

am6zzw00012387

4.  Partially peel back the trim of the center armrest hinge and remove the clip in the direction of arrow (1) shown in the figure.

Caution

•  Use a rag so that the clip does not fall off before it is removed. Otherwise, the clip may fall into the seat back and cannot be retrieved.

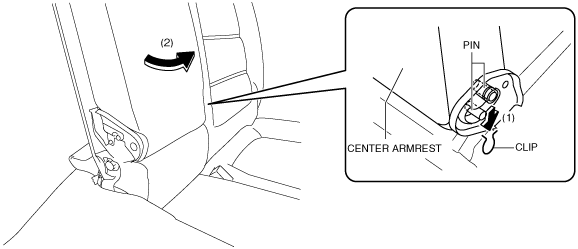

am6zzw00012388

5.  Remove the center armrest in the direction of arrow (2) shown in the figure while setting the pins aside.

6.  Install in the reverse order of removal.
