THEFT-DETERRENT SIREN
id091400003600
Purpose
• Alerts that a door, liftgate/trunk lid, or the bonnet has been opened improperly.
Function
• The theft-deterrent system activates if a door, the liftgate, or the bonnet is improperly opened.
Open Circuit Alert Control Function
-
• If the power or ground lines are cut, the theft-deterrent siren uses the back-up power supply to activate the siren.
• If the transmission lines are cut, the theft-deterrent system uses the vehicle's battery power to activate the siren.
• If any one of the following conditions are met, the siren is stopped:
-
― Receives go-to-initial signal from the rear body control module (RBCM).
Construction
• The theft-deterrent siren is installed inside the front bumper on the left side.
Operation

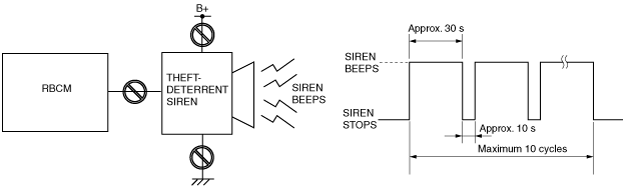

• The siren beeps when receiving an alert initialization signal from the rear body control module (RBCM). When a go-to-initial signal is received the siren is stopped.
Fail-safe
• Function not equipped.
