THEFT-DETERRENT SYSTEM

id091400003700

Outline

Structural View

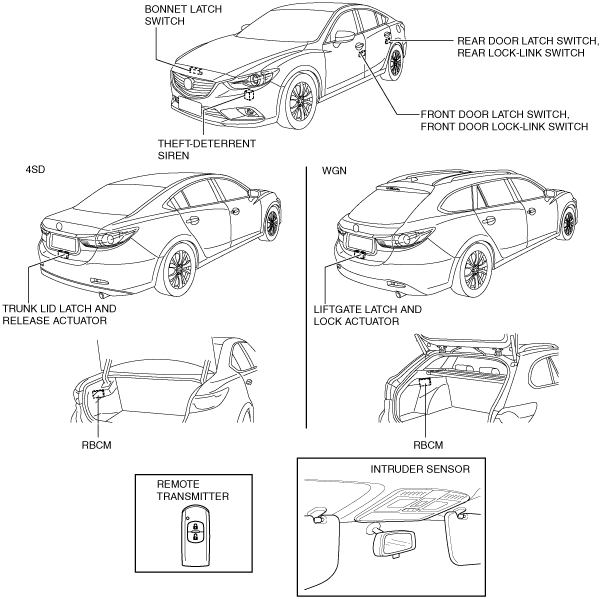

With intruder sensor

am6zzn00002107

Without intruder sensor

am6zzn00002106

System Wiring Diagram

With intruder sensor

am6zzn00002004

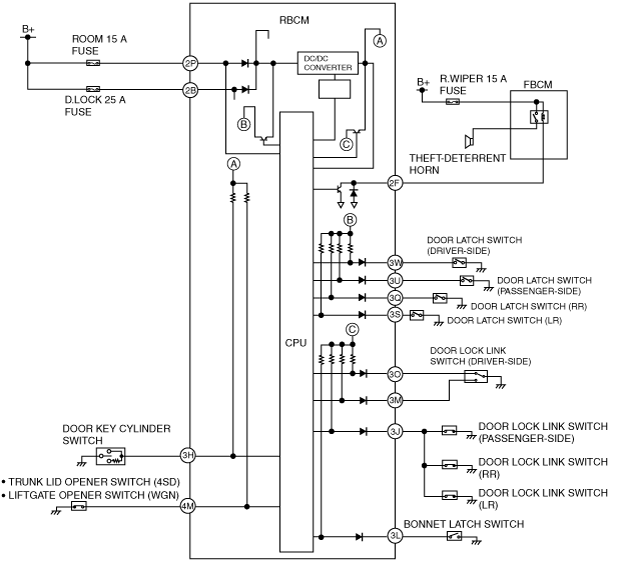

Without intruder sensor

am6zzn00002005

Function

Answer back function

•  When a locking operation is performed using the remote transmitter is in stand-by preparation mode, stand-by mode, the hazard warning lights flash once.

•  When a unlocking operation is performed using the remote transmitter is in initial mode, the hazard warning lights flash twice.

Intruder sensor cancel function

•  An intruder sensor cancel button has been installed on the remote transmitter. If the intruder sensor cancel button is on while the theft-deterrent system is stand-by preparatory mode, intruder sensor ultrasonic wave output is cut, and movement detection is stopped.

Operation (Without Intruder Sensor)

Note

•  The operation conditions of the theft-deterrent system alarm differ depending on the part number of the rear body control module (RBCM).

am6zzn00003040

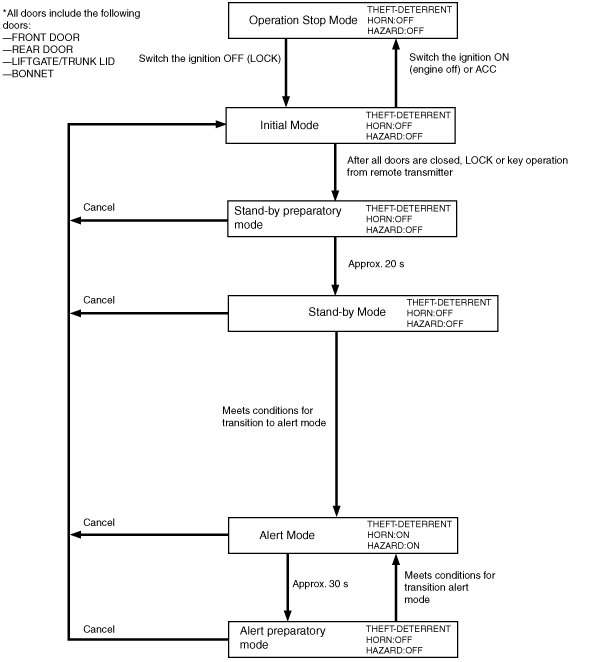

Mode transition

•  The rear body control module (RBCM) switches the theft-deterrent system mode based on the ignition switch and door conditions.

am6zzn00002134

Operation stop mode

•  In this mode, all theft-deterrent system operations are stopped.

•  The system changes to the operation stop mode when any of the following conditions are met.

―  Switch the ignition to ACC or ON (engine off).

Initial mode

•  This mode is the preparatory mode before changing to the stand-by mode. The system does not change directly to the alert mode from this mode.

Transition condition to the initial mode

•  The system changes from the operation stop mode to the initial mode if all of the following conditions are met.

―  Switch the ignition OFF (LOCK)

•  The system transitions from stand-by preparatory mode, stand-by mode, alert mode, and alert preparatory mode to the initial mode if the cancel conditions in each mode are met.

Transition condition to the stand-by preparatory mode

•  The system changes to the stand-by preparatory mode if any of the following conditions are met.

―  A lock operation was performed using the remote transmitter lock button or key with all the doors, liftgate/trunk lid, and bonnet closed.

Stand-by preparatory mode

•  This is mode prior to the stand-by mode.

•  If the cancel conditions are met, the system changes to the initial mode.

Transition condition to the stand-by mode

•  If the stand-by preparatory mode continues for approx. 20 s, the system changes to the stand-by mode.

Cancel conditions

•  If any of the following conditions are met, the stand-by preparation mode is canceled and the system changes to the initial mode.

―  Any front door latch switch on (door is open), or any rear door latch switch on (rear door is open), or liftgate/trunk lid latch switch on (liftgate/trunk lid is open), or bonnet latch switch off (bonnet is open)

―  Any door lock-link switch UNLOCK

―  Switch the ignition to ACC or ON (engine off)

―  Unlock operation using remote transmitter

―  Unlock operation using front door key cylinder (Part number KD45-675Y0 F or before)

―  Open the liftgate/trunk lid using the liftgate/trunk lid opener switch (With advanced keyless entry system)

Stand-by mode

•  The system starts monitoring approx. 20 s after the doors are locked for unauthorized door opening/closing. If any unauthorized operation is detected, the system changes to the alert mode.

•  If the cancel conditions are met, the system changes to the initial mode.

Transition condition to the alert mode

•  If any of the following conditions are met, the system changes to the alert mode.

―  Switch the ignition ON (engine off)

―  Door latch switch on (door is open)

―  Liftgate/trunk lid latch switch on (liftgate/trunk lid is open)

―  Bonnet latch switch off (bonnet is open)

―  Door lock-link switch UNLOCK

―  Unlock operation using front door key cylinder (Part number KD45-675Y0 G or later)

Cancel condition

•  If any of the following conditions are met, the stand-by mode is canceled and the system changes to the initial mode.

―  Unlock operation using remote transmitter

―  Switch the ignition to ACC or ON (engine off).

―  Unlock operation using front door key cylinder (Part number KD45-675Y0 F or before)

Alert mode

•  In this mode, the theft-deterrent horn and hazard warning lights are operated to alert the surrounding area.

•  When the alarm period (approx. 30 s) has elapsed, the system changes to the alert preparatory mode.

•  If the cancel conditions are met, the system changes to the initial mode.

ac5wzn00001473

Transition condition to the alert preparatory mode

•  When the alarm period (approx. 30 s) has elapsed, the system changes to the alert preparatory mode.

•  The alarm period is not extended even if a transition condition to alert mode is met again during an alarm period.

Cancel condition

•  If any of the following conditions are met, the alert mode is canceled, and the system changes to the initial mode.

―  Unlock operation using remote transmitter

―  Switch the ignition ON (engine off), and engine start

―  Unlock operation using front door key cylinder (Part number KD45-675Y0 F or before)

―  Open the liftgate/trunk lid using the liftgate/trunk lid opener switch (With advanced keyless entry system)

Alert preparatory mode

•  In the alert preparatory mode, the theft-deterrent horn and hazard warning light are not operated, however, the alarm triggers immediately if the condition is changed.

•  If the cancel conditions are met, the system changes to the initial mode.

Transition condition to alert mode

•  The system changes to the alert mode if any of the following conditions are met.

―  The ignition is switched from ON to off, or from off to ON

―  The door latch switch is turned from on (door is open) to off (door is closed), or from off (door is closed) to on (door is open)

―  The liftgate/trunk lid latch switch is turned from on (liftgate/trunk lid is open) to off (liftgate/trunk lid is closed), or from off (liftgate/trunk lid is closed) to on (liftgate/trunk lid is open)

―  The bonnet latch switch is turned from off (bonnet is open) to on (bonnet is closed) or from on (bonnet is closed) to off (bonnet is open)

―  The door lock-link switch is locked from unlock, or unlocked from lock

―  The front door key cylinder is locked from unlock, or unlocked from lock (Part number KD45-675Y0 G or later)

Cancel condition

•  If any of the following conditions are met, the alert preparatory mode is canceled and the system changes to the initial mode.

―  Unlock operation using remote transmitter

―  Switch the ignition ON, and engine start

―  Unlock operation using front door key cylinder (Part number KD45-675Y0 F or before)

―  Open the liftgate/trunk lid using the liftgate/trunk lid opener switch (With advanced keyless entry system)

Operation (With Intruder Sensor)

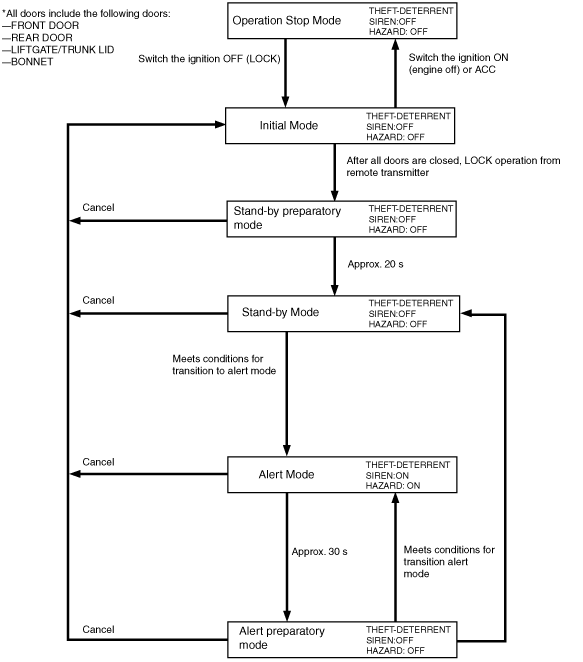

Mode transition

•  The rear body control module (RBCM) switches the theft-deterrent system mode based on the ignition switch and door conditions.

am6zzn00002135

Operation stop mode

•  In this mode, all theft-deterrent system operations are stopped.

•  The system changes to the operation stop mode when any of the following conditions are met.

―  Switch the ignition to ACC or ON (engine off).

Initial mode

•  This mode is the preparatory mode before changing to the stand-by mode. The system does not change directly to the alert mode from this mode.

Transition condition to the initial mode

•  The system changes from the operation stop mode to the initial mode if all of the following conditions are met.

―  Switch the ignition OFF (LOCK)

•  The system transitions from stand-by preparatory mode, stand-by mode, alert mode, and alert preparatory mode to the initial mode if the cancel conditions in each mode are met.

Transition condition to the stand-by preparatory mode

•  The system changes to the stand-by preparatory mode if any of the following conditions are met.

―  A lock operation was performed using the remote transmitter lock button with all the doors, liftgate/trunk lid, and bonnet closed.

Stand-by preparatory mode

•  This is mode prior to the stand-by mode.

•  If the cancel conditions are met, the system changes to the initial mode.

Transition condition to the stand-by mode

•  If the stand-by preparatory mode continues for approx. 20 s, the system changes to the stand-by mode.

Cancel conditions

•  If any of the following conditions are met, the stand-by preparatory mode is canceled and the system changes to the initial mode.

―  Any door latch switch on (door is open), or liftgate/trunk lid latch switch on (liftgate/trunk lid is open), or bonnet latch switch off (bonnet is open)

―  Any door lock-link switch UNLOCK

―  Switch the ignition to ACC or ON (engine off).

―  Unlock operation using remote transmitter

―  Open the liftgate/trunk lid using the liftgate/trunk lid opener switch (With advanced keyless entry system)

Stand-by mode

•  The mode monitors for unauthorized door opening/closing approx. 20 s after the doors are locked. If any unauthorized operation is detected, the system changes to alert mode.

•  If the cancel conditions are met, the system changes to the initial mode.

Transition condition to the alert mode

•  If any of the following conditions are met, the system changes to the alert mode.

―  Switch the ignition ON (engine off)

―  Door latch switch on (door is open)

―  Liftgate/trunk lid latch switch on (liftgate/trunk lid is open)

―  Bonnet latch switch off (bonnet is open)

―  Door lock-link switch UNLOCK

―  Intrusion into vehicle is detected by intruder sensor

Cancel condition

•  If any of the following conditions are met, the stand-by mode is canceled and the system changes to the initial mode.

―  Unlock operation using remote transmitter

―  Switch the ignition to ON (engine off), and engine start

―  Open the liftgate/trunk lid using the liftgate/trunk lid opener switch (With advanced keyless entry system)

Alert mode

•  In this mode, the theft-deterrent siren and hazard warning lights are operated to alert the surrounding area.

•  When the alarm period (approx. 30 s) has elapsed, the system changes to the alert preparatory mode.

•  If the cancel conditions are met, the system changes to the initial mode.

ac5wzn00001416

Transition condition to the alert preparatory mode

•  When the alarm period (approx. 30 s) has elapsed, the system changes to the alert preparatory mode.

•  The alarm period is not extended even if a transition condition to alert mode is met again during an alarm period.

Cancel condition

•  If any of the following conditions are met, the alert mode is canceled, and the system changes to the initial mode.

―  Unlock operation using remote transmitter

―  Switch the ignition to ON (engine off), and engine start

―  Open the liftgate/trunk lid using the liftgate/trunk lid opener switch (With advanced keyless entry system)

Alert preparatory mode

•  In the alert preparatory mode, the theft-deterrent siren and hazard warning light are not operated, however, the alarm triggers immediately if the condition is changed.

•  If the cancel conditions are met, the system changes to the initial mode.

Transition condition to alert mode

•  The system changes to the alert mode if any of the following conditions are met.

―  Switch the ignition ON (engine off)

―  Door latch switch on (door is open)

―  Liftgate/trunk lid latch switch on (liftgate/trunk lid is open)

―  Bonnet latch switch off (bonnet is open)

―  Door lock-link switch UNLOCK

―  Intrusion into vehicle is detected by intruder sensor

Transition condition to the stand-by mode

•  If there is no transition to cancel or alert mode for a period of 5 s after warning stand-by mode is established, the system switches to stand-by mode.

Cancel condition

•  If any of the following conditions are met, the alert preparatory mode is canceled and the system changes to the initial mode.

―  Unlock operation using remote transmitter

―  Switch the ignition ON (engine off), and engine start

―  Open the liftgate/trunk lid using the liftgate/trunk lid opener switch (With advanced keyless entry system)
