REMOTE TRANSMITTER


id091400111700


Purpose

•  When the lock button/unlock button of the remote transmitter is pressed, ID data is sent to the keyless receiver.

Function

•  When the remote transmitter sends ID data, the operation indicator light illuminates.

Construction

•  The remote transmitter is built into the operation indicator light.
•  The remote transmitter secures specific electronic codes (key ID number) built into the electronic communication device (transponder).
•  In case the transmitter is inoperable due to battery depletion, the doors can be locked/unlocked using the auxiliary key.

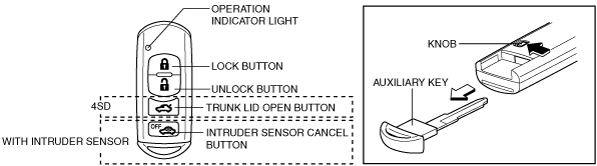

am6zzn00002023

Operation

•  When a remote transmitter button is pressed, ID data at a radio frequency of 433 MHz is sent to the keyless receiver.

Fail-safe

•  Function not equipped.
