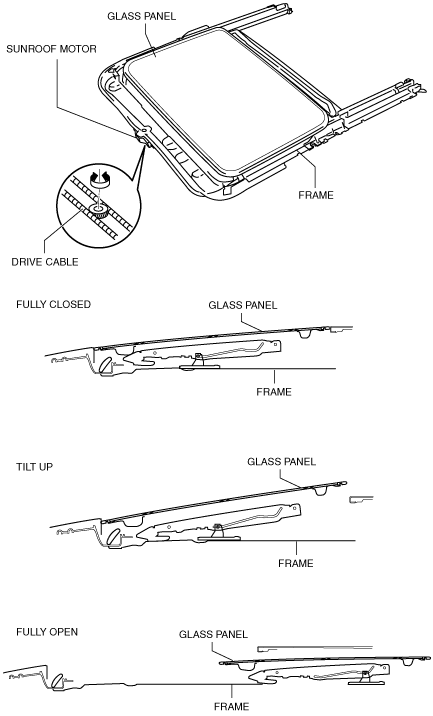

•  The glass panel tilts up/down or slides open/closed by the operation of the sunroof unit.

•  The drive cables inside the frame of the sunroof unit are engaged to the sunroof motor drive gear.

•  When the sunroof motor rotates normally or in reverse, the drive cables operate in the same direction.

•  The glass panel is fixed to the guides so that the panel moves by the drive cables sliding the guides.

•  Function not equipped.
