MUDGUARD REMOVAL/INSTALLATION

id091600467600

Front Mudguard

1.  Remove the front splash shield No.2. (See SPLASH SHIELD REMOVAL/INSTALLATION.)

2.  Remove screws A.

am6zzw00010195

3.  Remove fasteners B.

4.  Pull the front mudguard in the direction of the arrow shown in the figure.

am6zzw00010890

5.  Install in the reverse order of removal.

Rear Mudguard

1.  Remove cap nuts A.

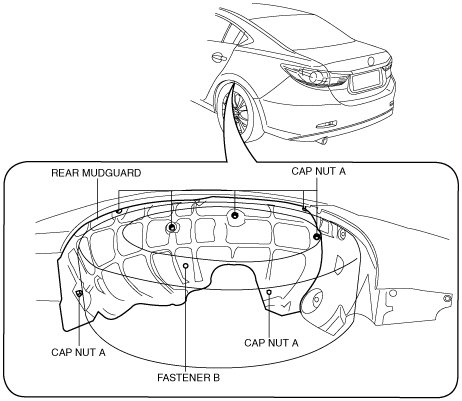

LH

am6zzw00011470

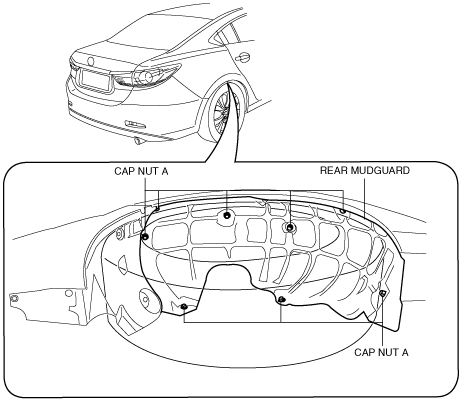

RH

am6zzw00011471

2.  Remove fastener B. (LH side only)

3.  Pull the rear mudguard in the direction of the arrow shown in the figure.

am6zzw00010891

4.  Install in the reverse order of removal.
