TRUNK LID GARNISH REMOVAL/INSTALLATION

id091600816100

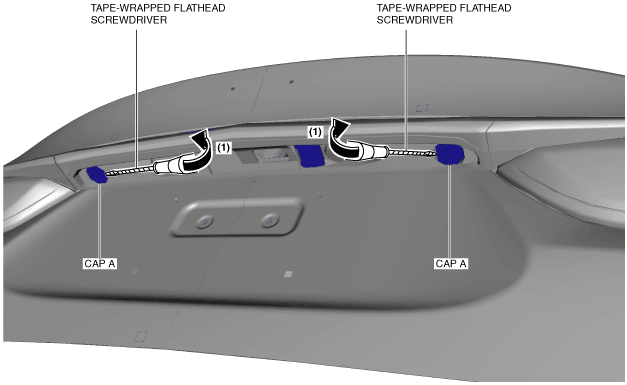

1.  Insert a tape-wrapped flathead screwdriver into the shown in the figure and remove the caps A in the direction of arrow (1).

am6zzw00010331

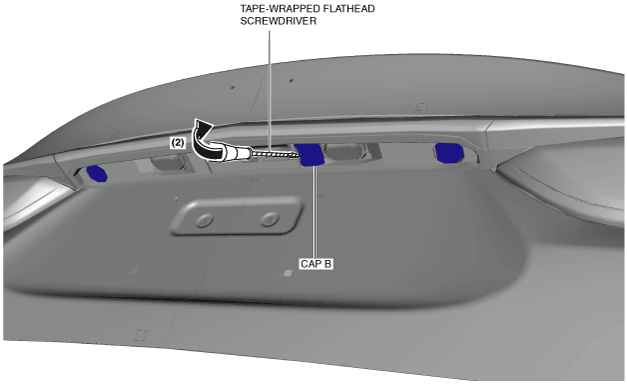

2.  Insert a tape-wrapped flathead screwdriver into the shown in the figure and remove the cap B in the direction of arrow (2).

am6zzw00010332

3.  Remove bolts C.

am6zzw00010333

4.  Insert a tape-wrapped flathead screwdriver into the shown in the figure and remove the clips D, guides E in the direction of arrow in the order of (3), (4).

am6zzw00010334

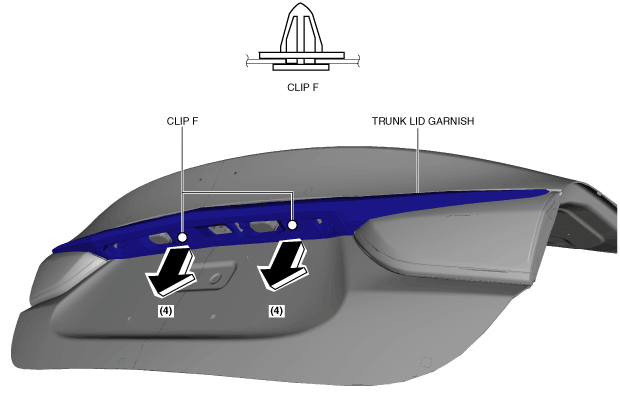

5.  Pull the trunk lid garnish in the direction of the arrow (4) and remove it while detaching clips F.

am6zzw00010335

6.  Install in the reverse order of removal.
