FLOOR UNDER COVER REMOVAL/INSTALLATION

id091600820200

Floor Under Cover No.1

1.  Remove the bolt and fasteners.(with floor under cover No.3)

am6zzw00012707

2.  Remove the floor under cover No.3.(with floor under cover No.3)

3.  Lift up the vehicle.

4.  Remove the bolts, nut, fasteners, and cap nut.

am6xuw00007379

5.  Remove the floor under cover No.1.

6.  Install in the reverse order of removal.

Floor Under Cover No.2

1.  Remove the bolts and fastener.(with floor under cover No.4)

am6xuw00007380

2.  Remove the floor under cover No.4.(with floor under cover No.4)

3.  Lift up the vehicle.

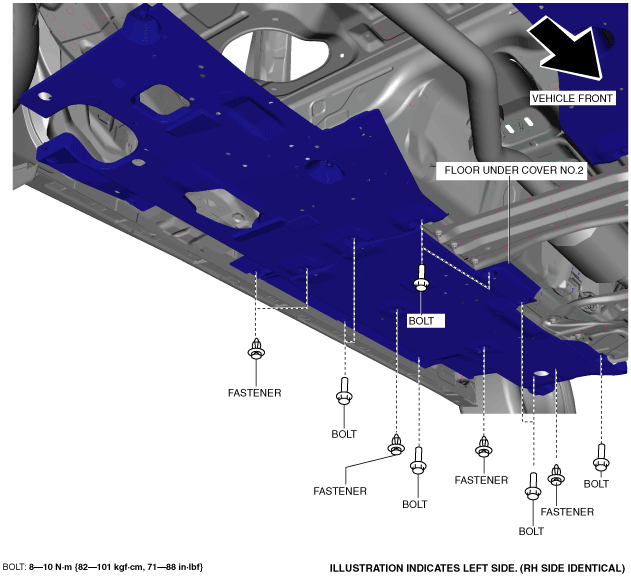

4.  Remove the bolts and fasteners.

am6xuw00007381

5.  Remove the floor under cover No.2.

6.  Install in the reverse order of removal.
