ORNAMENT INSTALLATION

id091600994300

Caution

•  Do not allow oil to get on the ornament and the adhesion area of the ornament. Otherwise, the ornament could fall off easily.

1.  Degrease the adhesion area of the ornament.

2.  Warm the ornament to 15 to 40 degrees using a hot air dryer.

3.  Install the ornament to the position shown in the figure.

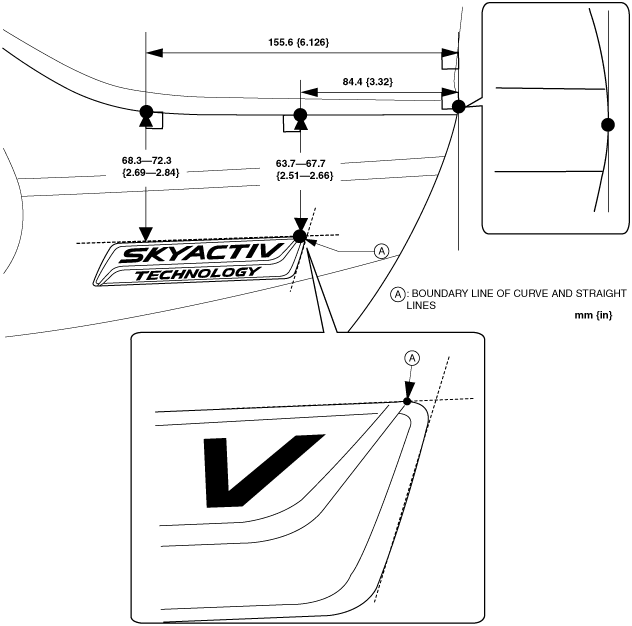

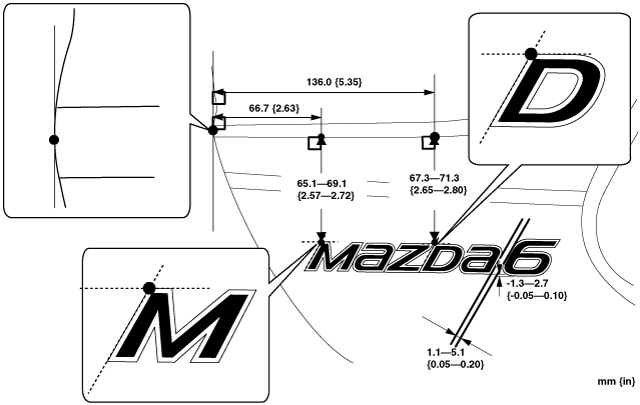

4SD (European (L.H.D. U.K.), Australian, General (R.H.D.), General (L.H.D.) specs.)

am6zzw00012038

am6zzw00012039

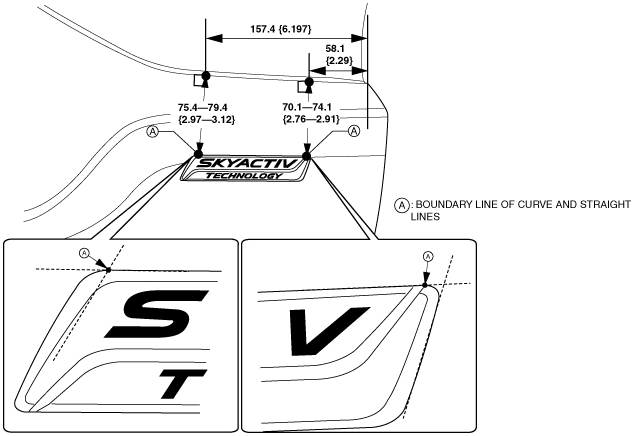

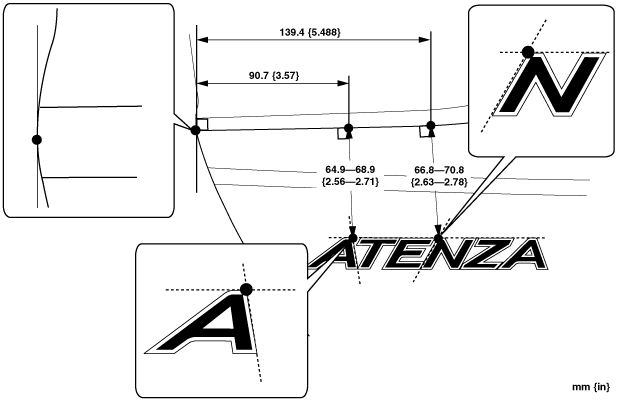

4SD (China specs.)

am6zzw00012123

am6zzw00012039

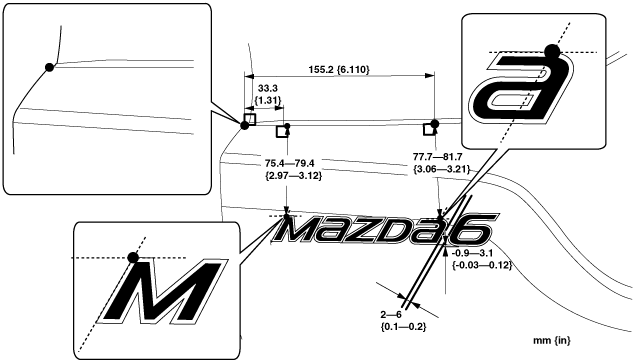

WGN

am6zzw00012040

am6zzw00012041

4.  Press the ornament with a force of 49 N.m {5.0 kgf·m, 36 ft·lbf} or more so that the clearance between the ornament and the adhesion area of the ornament is 0.8 mm {0.03 in} or less.
