DASHBOARD DISASSEMBLY/ASSEMBLY

id091700800400

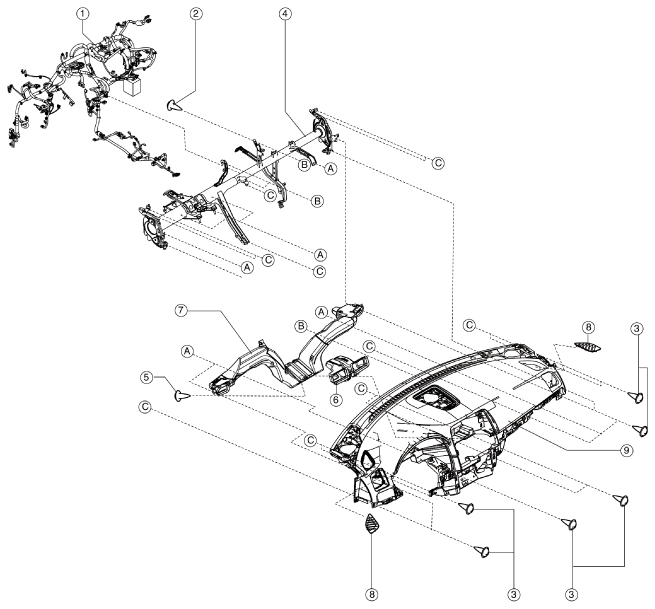

1.  Disassemble in the order indicated in the table.

ac5wzw00002999

1	Wiring harness
2	Screw A
3	Screw B
4	Dashboard member
5	Screw C
6	Duct No.1
7	Duct No.2
8	Demister grille
9	Dashboard

2.  Assemble in the reverse order of disassembly.
