B-PILLAR UPPER TRIM REMOVAL/INSTALLATION

id091700802100

1.  Remove the following parts:

(1)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(3)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(4)  Adjuster anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(5)  Upper anchor installation bolts on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

2.  Partially peel back the seaming welt.

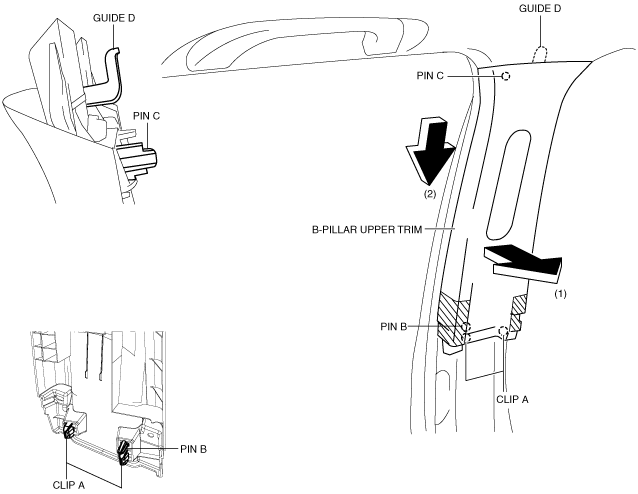

3.  Take the shaded area shown in the figure, and pull the B-pillar upper trim in the direction of the arrow (1) while detaching clips A, pin B, pin C.

am6zzw00009351

4.  Remove the B-pillar upper trim in the direction of the arrow (2) shown in the figure while detaching the guide D.

Caution

•  If clips A, pin B and pin C is removed forcefully, guide D may be damaged. Carefully remove clips A, pin B and pin C so as not to damage guide D.

5.  Install in the reverse order of removal.
