FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY

id091700804200

Driver-side

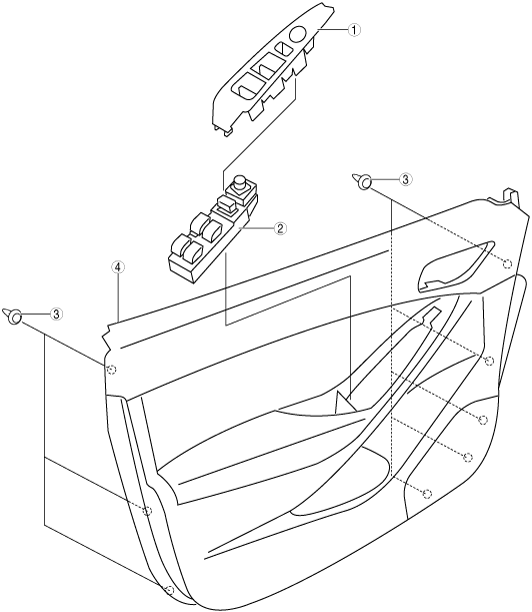

1.  Disassemble in the order shown in the figure.

am6zzw00011726

1	Switch panel cover
2	Power window main switch (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)
3	Fastener
4	Front door trim

2.  Assemble in the reverse order of disassembly.

Passenger-side

1.  Disassemble in the order shown in the figure.

ac5wzw00001676

1	Switch panel cover
2	Power window sub switch (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)
3	Fastener
4	Front door trim

2.  Assemble in the reverse order of disassembly.
