SIDE WALL REMOVAL/INSTALLATION

id091700805400

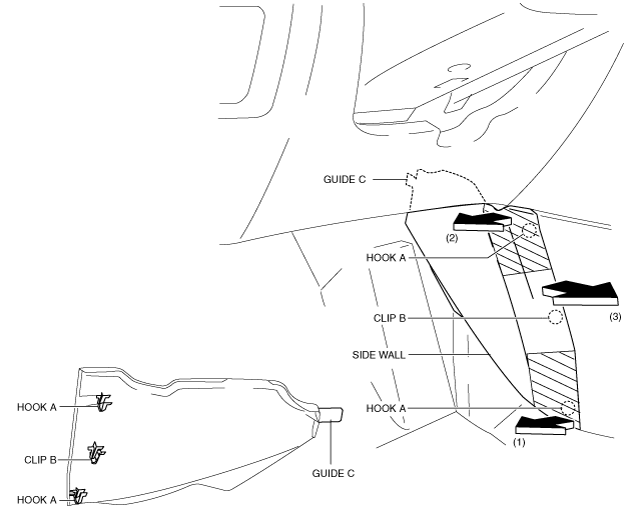

1.  Pull the side wall in the direction of the arrow in the order of (1), (2) and remove it while detaching hooks A and clip B.

ac5uuw00001795

2.  Pull the side wall in the direction of the arrow (3) and remove it while detaching the guide C.

Caution

•  If the hooks A and clip B is removed forcefully, guide C may be damaged. Carefully remove hooks A and clip B so as not to damage guide C.

3.  Install in the reverse order of removal.
