FRONT COMBINATION LIGHT

id091800010200


Purpose

•  Parts related to the front exterior lights are grouped and housed together such as the headlight, parking light, front turn light, headlight leveling actuator, wiring harnesses, and connectors.

Function

•  Each light illuminates or flashes when the light switch, turn switch, or hazard warning switch is operated.

Construction

•  A halogen type or discharge type headlight is available for the front combination light.

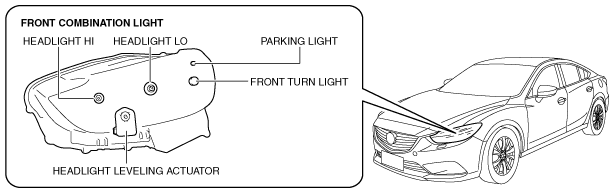

Halogen type

•  The following parts are an integrated structure.
―  Headlight LO
―  Headlight HI
―  Parking light
―  Front turn light
―  Headlight leveling actuator
•  A projector type headlight has been adopted for the headlight LO.
•  A clear lens has been adopted for the front combination light.
Note
•  Fogging or condensation on the inside of the front combination lights may occur, however, it is a natural phenomenon occurring as a result of a temperature difference between the interior and exterior of the front combination lights and has no effect on the light performance.
•  Fogging or condensation occurring as a natural phenomenon will dissipate when the temperature inside the front combination lights rises after the headlights are illuminated and a period of time has elapsed.
am6zzn00002241


Discharge type

•  The following parts are an integrated structure.
―  Headlight HI/LO
―  Parking light
―  Front turn light
―  Discharge headlight control module
―  Headlight leveling actuator
―  Swivel actuator
•  A projector type headlight has been adopted for the headlight HI/LO.
•  A clear lens has been adopted for the front combination light.
Note
•  Fogging or condensation on the inside of the front combination lights may occur, however, it is a natural phenomenon occurring as a result of a temperature difference between the interior and exterior of the front combination lights and has no effect on the light performance.
•  Fogging or condensation occurring as a natural phenomenon will dissipate when the temperature inside the front combination lights rises after the headlights are illuminated and a period of time has elapsed.
am6zzn00002242


Operation

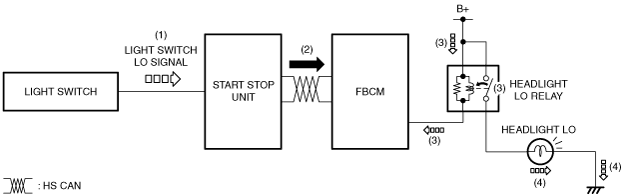

Headlight LO

Halogen type
1.  When the light switch is operated to the HEAD position, a light switch LO signal is input to the start stop unit.
2.  The start stop unit sends the light switch LO signal to the front body control module (FBCM) as a CAN signal.
3.  When the front body control module (FBCM) receives the light switch LO signal, it turns the headlight LO relay on.
4.  When the headlight LO relay turns on, the headlight LO is illuminated.
am6zzn00002243
Discharge type
•  Refer to the discharge headlight system. (See DISCHARGE HEADLIGHT SYSTEM.)


Headlight HI

Halogen type
1.  When the light switch is operated to the HEAD position, a light switch LO signal is input to the start stop unit.
2.  The start stop unit sends the light switch LO signal to the front body control module (FBCM) as a CAN signal.
3.  When the front body control module (FBCM) receives the light switch LO signal, it turns the headlight LO relay on.
4.  When the headlight LO relay turns on, the headlight LO is illuminated.
5.  When the light switch is operated to the HI position, a light switch HI signal is input to the start stop unit.
6.  The start stop unit sends the light switch HI signal to the front body control module (FBCM) as a CAN signal.
7.  When the front body control module (FBCM) receives the light switch HI signal, it turns the headlight HI relay on.
8.  When the headlight HI relay turns on, the headlight HI is illuminated.
am6zzn00002244
Discharge type
•  Refer to the discharge headlight system. (See DISCHARGE HEADLIGHT SYSTEM.)


Flash-to-pass

Halogen type
1.  When the light switch is operated to the FLASH-TO-PASS position, a light switch FLASH-TO-PASS signal is input to the start stop unit.
2.  The start stop unit sends the light switch FLASH-TO-PASS signal to the front body control module (FBCM) as a CAN signal.
3.  When the front body control module (FBCM) receives the light switch FLASH-TO-PASS signal, it turns the headlight LO and HI relays on.
4.  When the headlight LO and HI relays turn on, the headlight LO and HI are illuminated.
am6zzn00002245
Discharge type
•  Refer to the discharge headlight system. (See DISCHARGE HEADLIGHT SYSTEM.)


Running light

•  Refer to the running light system. (See RUNNING LIGHT SYSTEM.)


Parking light

1.  When the light switch is operated to the TNS position, a light switch TNS signal is input to the start stop unit.

2.  The start stop unit sends the light switch TNS signal to the front body control module (FBCM) as a CAN signal.

3.  When the front body control module (FBCM) receives the light switch TNS signal, the parking lights are illuminated.

am6zzn00002246


Front turn light (turn light system)

1.  When the turn switch is operated to the LH or RH position, a turn switch LH or RH signal is input to the start stop unit.

2.  The start stop unit sends the turn switch LH or RH signal to the front body control module (FBCM) as a CAN signal.

3.  When the front body control module (FBCM) receives the turn switch LH or RH signal, the front turn light (LH) or (RH) flashes.

am6zzn00002783


Front turn light (hazard warning system)

1.  When the hazard warning switch is turned on, a hazard warning signal is input to the start stop unit.

2.  The start stop unit sends a hazard warning signal to the front body control module (FBCM).

3.  When the front body control module (FBCM) receives the hazard warning signal, the front turn lights (LH) and (RH) flash.

am6zzn00002248


Headlight leveling actuator

•  Refer to the headlight leveling actuator. (See HEADLIGHT LEVELING ACTUATOR.)


Swivel actuator (With headlight auto leveling system/adaptive front lighting system (AFS))

•  Refer to the adaptive front lighting system (AFS). (See ADAPTIVE FRONT LIGHTING SYSTEM (AFS).)


Fail-safe

•  Function not equipped.
