LIGHTS-ON INDICATOR LIGHT

id091800013400

Purpose

• Notifies the user that the TNS or the headlights LO are on.

Function

• Illuminates when the illumination conditions for the TNS, headlights LO, or passing are met.

Construction

• Displayed in the instrument cluster.

am6zzn00002354

Operation

1. When the light switch is operated to the TNS, HEAD, or FLASH-TO-PASS position, a light switch TNS, LO, or FLASH-TO-PASS signal is sent to the start stop unit.

2. The start stop unit sends the light switch TNS, LO, or FLASH-TO-PASS signal to the front body control module (FBCM).

3. The front body control module (FBCM) sends the light switch TNS, LO, or FLASH-TO-PASS signal to the instrument cluster as a TNS illumination or headlight LO illumination signal.

4. When the instrument cluster receives the TNS illumination, or headlight LO illumination signal, it illuminates the lights-on indicator light.

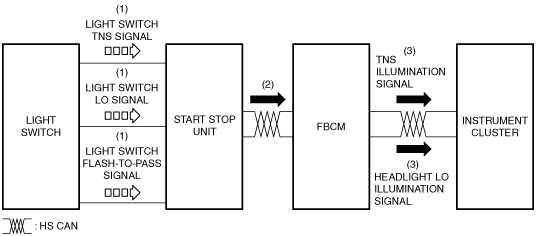

am6zzn00002355

Fail-safe

• Function not equipped.
