HEADLIGHT MANUAL LEVELING SYSTEM

id091800400400

Outline

• The headlight manual leveling system changes the headlight LO optical axis according to the operation of the headlight leveling switch to prevent driver dazzle in oncoming vehicles from headlight glare and to assure a range of visibility.

Structural View

am6zzn00002260

System Wiring Diagram

am6zzn00002261

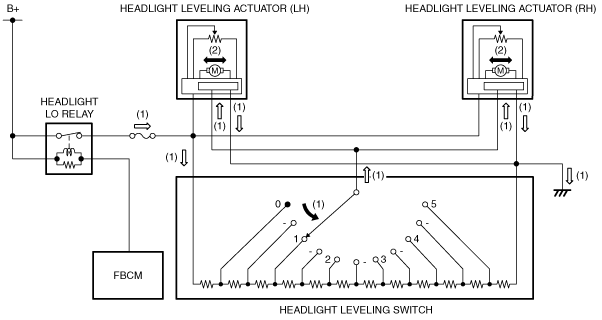

Operation

1. When the headlight leveling switch is operated with the headlights turned on, the resistance value changes according to the changed position, and electric current flows to the headlight leveling actuator.

2. When electric current flows to the headlight leveling actuator, the motor inside the actuator operates and the headlight LO optical axis changes.

am6zzn00002262
