BACK-UP LIGHT BULB REMOVAL/INSTALLATION

id091800810000

4SD

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2. Partially peel back the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION.)

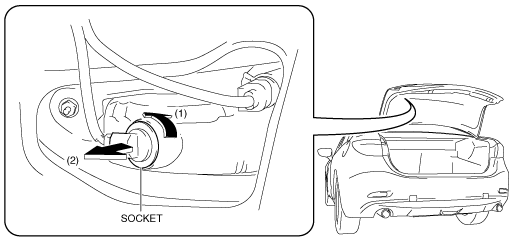

3. Rotate the socket in the direction of the arrow (1) shown in the figure and remove it from the trunk lid light in the direction of the arrow (2) shown in the figure.

am6zzw00009238

4. Remove the back-up light bulb.

am6zzw00009239

5. Install in the reverse order of removal.

WGN

2. Insert a tape-wrapped flathead screwdriver into the service hole in the position shown in the figure.

am6zzw00009240

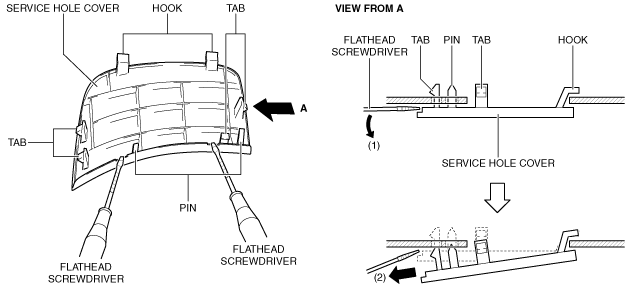

3. Move the flathead screwdriver in the direction of the arrow (1) shown in the figure to detach the service hole cover tabs from the liftgate.

am6zzw00009241

4. Pull out the service hole cover in the direction of the arrow (2) shown in the figure and pull out the service hole cover hooks from the liftgate.

5. Remove the service hole cover.

6. Rotate the socket in the direction of the arrow (3) shown in the figure and remove it from the liftgate light in the direction of the arrow (4) shown in the figure.

am6zzw00009242

7. Remove the back-up light bulb.

am6zzw00009243

8. Install in the reverse order of removal.
