SIDE TURN LIGHT REMOVAL/INSTALLATION

id091800811500

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL.) (See OUTER MIRROR GLASS INSTALLATION.)

3.  Remove the outer mirror garnish (upper side). (See OUTER MIRROR GARNISH REMOVAL/INSTALLATION.)

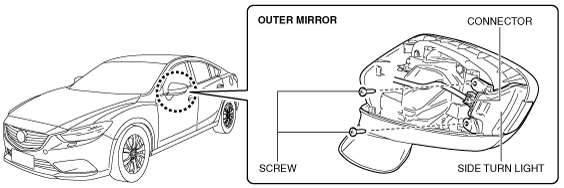

4.  Remove the screws.

am6zzw00008093

5.  Remove the side turn light.

6.  Disconnect the connector.

7.  Install in the reverse order of removal.
