HEADLIGHT CLEANER SYSTEM

id091900103400


Outline

•  The headlight cleaner system removes dirt from the headlights by spraying washer fluid from the headlight cleaner nozzles installed to the front bumper.
•  A pop-up type headlight cleaner has been adopted.
•  The front body control module (FBCM) performs headlight cleaner system fail-safe. (See FRONT BODY CONTROL MODULE (FBCM).)

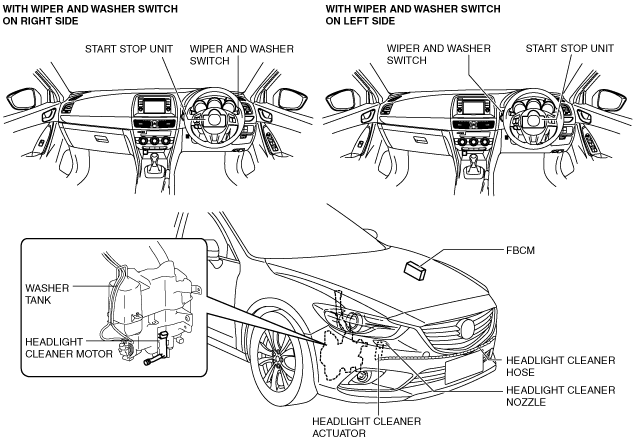

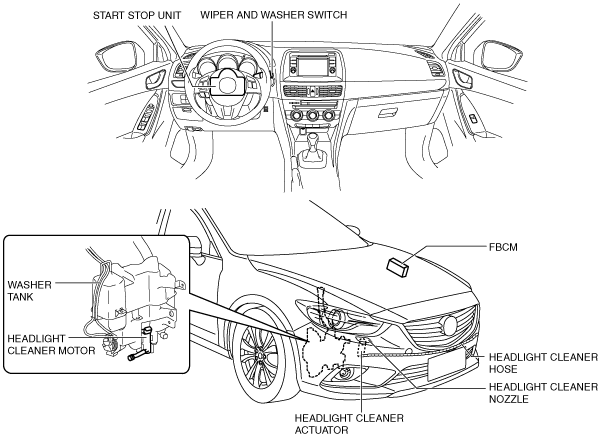

Structural View

L.H.D.

am6zzn00001968

R.H.D.

am6zzn00001969

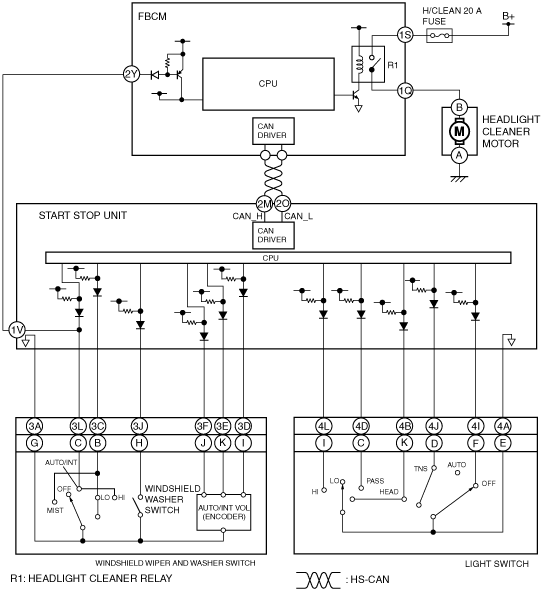

System Wiring Diagram

With wiper and washer switch on right side

ac5wzn00001284

With wiper and washer switch on left side

ac5wzn00001285

Function

•  The headlight cleaner motor operates when the windshield washer switch is operated with the ignition switched ON (engine off or on) and headlights turned on.
•  When the headlight cleaner motor operates, the headlight cleaner actuator is operated by the hydraulic pressure of the washer fluid pumped from the headlight cleaner motor, and washer fluid is sprayed from the headlight cleaner nozzles.
―  Auto-operation Control
•  When the windshield washer switch is turned on the first time after the headlights are turned on, the headlight cleaner system operates automatically.
•  Afterwards, the headlight cleaner system operates automatically every 5th times the windshield washer switch is turned on.
―  Manual operation Control
•  The headlight cleaner system operates when the windshield washer switch is turned on twice quickly.

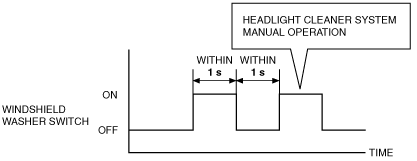

•  The windshield washer switch operation needs to be done within the period of time shown in the figure.
am6zzn00001823

Operation


Auto-operation

1.  When the windshield washer switch is turned on with the ignition switched ON (engine off or on) and the headlights turned on (1), the start stop unit sends a windshield washer switch position signal (ON) to the front body control module (FBCM) as a CAN signal.(2)

2.  When the front body control module (FBCM) receives the windshield washer switch position signal (ON) the first time after the headlights are turned on, it supplies the base current from the internal CPU to the transistor (3), and collector current flows from the internal power supply (4), turning the headlight cleaner relay on.(5)

Note
•  The front body control module (FBCM) monitors the headlight on/off condition by receiving CAN signals from the start stop unit.

3.  When the headlight cleaner relay is turned on, current flows from the power supply inside the front body control module (FBCM) to the headlight cleaner motor and the headlight cleaner motor operates, and washer fluid is sprayed from the headlight washer nozzles.(6)

4.  The front body control module (FBCM) counts the number of times it receives a windshield washer switch position signal (ON) from the start stop unit, and it operates the headlight cleaner each time the counted number of times reaches five.

Note
•  The counted number of windshield washer switch position signal (ON) is reset to zero in the following cases:
―  When the counted number of windshield washer switch position signal (ON) reaches five.
―  When the headlights are turned off.

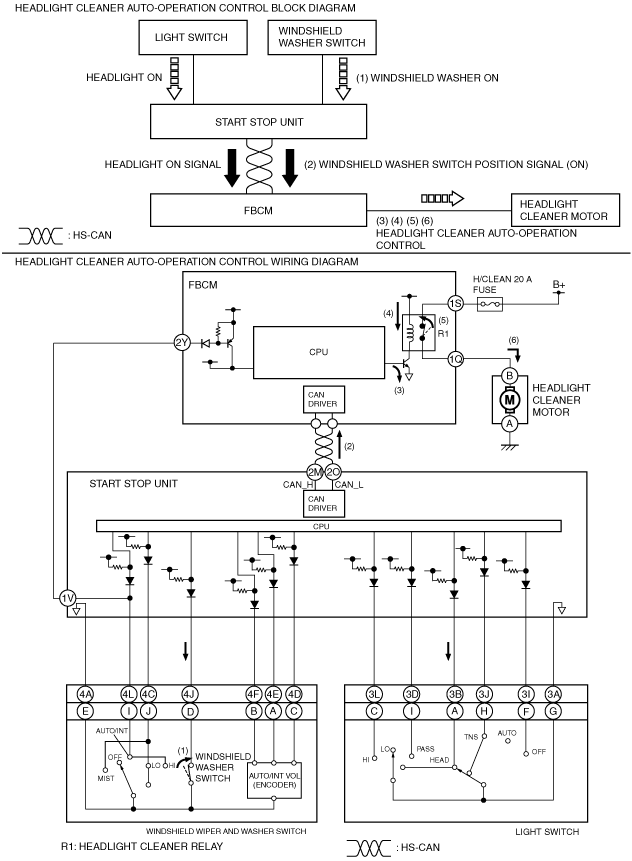

With wiper and washer switch on right side

am6zzn00001791

With wiper and washer switch on left side

am6zzn00001792


Manual operation

1.  When the windshield washer switch is turned on twice quickly with the ignition switched ON (engine off or on) and the headlights turned on (1), the start stop unit sends a windshield washer switch position signal (ON) to the front body control module (FBCM) as a CAN signal.(2)

2.  When the front body control module (FBCM) receives the windshield washer switch position signal (ON) twice within a certain period of time, it supplies the base current from the internal CPU to the transistor (3), and collector current flows from the internal power supply (4), turning the headlight cleaner relay on.(5)

3.  When the headlight cleaner relay is turned on, current flows from the power supply inside the front body control module (FBCM) to the headlight cleaner motor and the headlight cleaner motor operates, and washer fluid is sprayed from the headlight cleaner nozzles.(6)

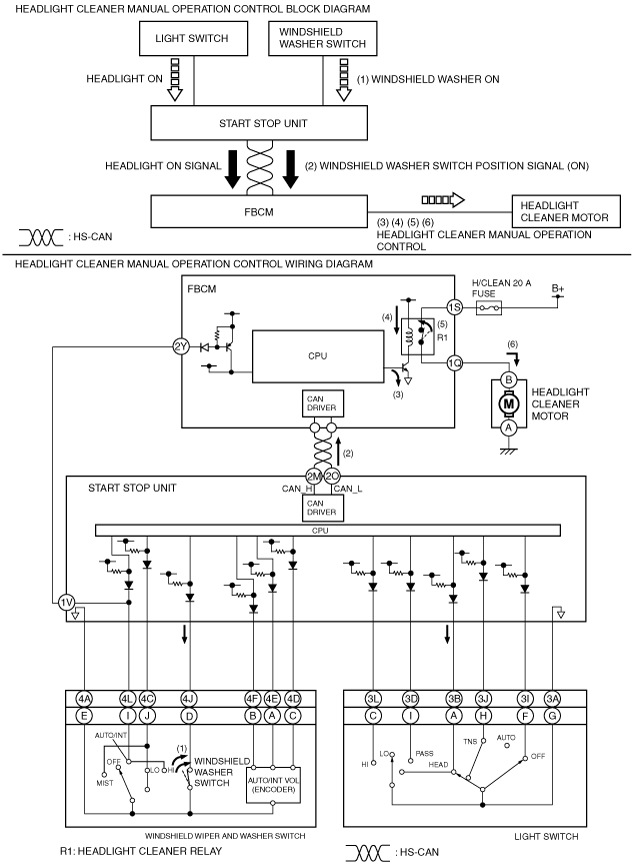

With wiper and washer switch on right side

am6zzn00001793

With wiper and washer switch on left side

am6zzn00001794
