AUDIO UNIT (WITHOUT COLOR LCD)

id092000110200

Note

•  “iPod” is a registered trademark of Apple Inc. in the United States and other countries.

Outline

Function

Item		Specification
Preset memory	AM	6
	FM1	6
	FM2	6

USB/iPod applicable

•  A USB device such as USB memory or an iPod connected to the auxiliary jack/USB port can be controlled by the audio unit.

Latin character display

•  Information such as CD and radio related information can be displayed in the audio unit display in Latin characters.

Specification

Item			Specification
Rated voltage		(V)	12
Frequency range	AM	(kHz)	531—1602 (European (L.H.D. U.K.) specs.) 530—1620 (With AM frequency pitch: 5KHz pitch) 522—1629 (With AM frequency pitch: 9KHz pitch)
	FM	(MHz)	87.5—108
	LW	(kHz)	153—279
Amplifier maximum output		(W)	25×4
Output impedance		(ohm)	4

Construction

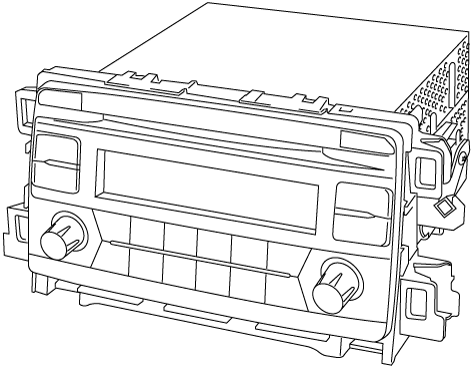

ac5jjn00000375

Terminal layout and signal

Audio unit

Terminal		Signal
	1A	Front door speaker LH (+)
	1B	B+
	1C	Front door speaker LH (-)
	1D	Front door speaker RH (+)
	1E	TNS (+)
	1F	Front door speaker RH (-)
	1G	TNS (–)
	1H	—
	1I	Vehicle speed signal
	1J	—
	1K	—
	1L	DIM cancel
	1M	—
	1N	Steering switch 1
	1O	—
	1P	Steering switch 2
	1Q	—
	1R	ACC
	1S	Rear door speaker LH (+)
	1T	—
	1U	Rear door speaker LH (-)
	1V	Rear door speaker RH (+)
	1W	Power ground
	1X	Rear door speaker RH (-)
	2A	—
	2B	—
	2C	—
	2D	—
	2E	—
	2F	—
	2G	—
	2H	—
	2I	—
	2J	—
	2L	—
	2N	—
	2P	—
	2R	—
	2T	—
	2V	—
	2W	AUX detect
	2X	AUX signal LH, RH (-)
	2Y	AUX signal RH (+)
	2Z	AUX signal LH (+)
	2AA	—
	2AB	—
	2AC	—
	2AD	—
	3A	USB power ground
	3B	USB data (+)
	3C	USB power supply
	3D	USB data (-)

Antenna feeder connector

Terminal		Signal
	4A	ANT control
	4B	Antenna

Switch Location

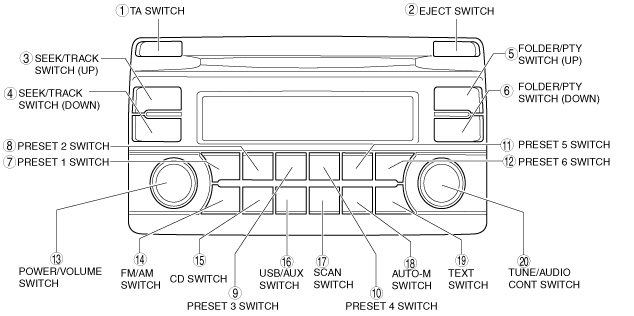

With POWER/VOLUME switch on right side

am6zzn00002160

No.	Switch name	Function
1	TA button	Switches to a radio station which broadcasts traffic information.
2	EJECT button	Ejects CD.
3	SEEK/TRACK button(up)	•  Fast-forwards current tracks or radio stations. •  Changes CD tracks or switches radio stations.
4	SEEK/TRACK button(down)	•  Reverses current tracks or radio stations. •  Changes CD tracks or switches radio stations.
5	FOLDER/PTY button(up)	•  Selects folder to be played (MP3/WMA/AAC/CD playback). •  Selection of radio station.
6	FOLDER/PTY button(down)	•  Selects folder to be played (MP3/WMA/AAC/CD playback). •  Selection of radio station.
7	PRESET 1 button	Switches to radio station programmed in Preset 1.
8	PRESET 2 button	Switches to radio station programmed in Preset 2.
9	PRESET 3 button	Switches to radio station programmed in Preset 3.
10	PRESET 4 button	Switches to radio station programmed in Preset 4.
11	PRESET 5 button	Switches to radio station programmed in Preset 5.
12	PRESET 6 button	Switches to radio station programmed in Preset 6.
13	POWER/VOLUME button	Audio power on/off and volume adjustment are possible.
14	FM/AM button	Switches to radio mode.
15	CD button	Switches to CD mode.
16	USB/AUX button	Switches to USB mode/AUX mode.
17	SCAN button	Search and selection of receivable radio station is possible.
18	AUTO-M button	Stores up to six receivable stations.
19	TEXT button	Switches LCD indication.
20	TUNE/AUDIO CONT button	•  Changes CD tracks or switches radio stations. •  Audio sound quality can be adjusted.

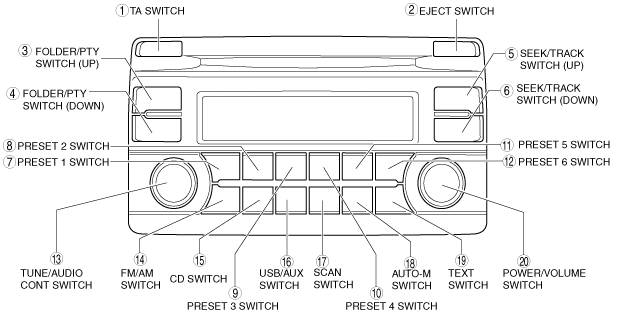

With POWER/VOLUME switch on left side

am6zzn00002161

No.	Switch name	Function
1	TA button	Switches to a radio station which broadcasts traffic information.
2	EJECT button	Ejects CD.
3	FOLDER/PTY button(up)	•  Selects folder to be played (MP3/WMA/AAC/CD playback). •  Selection of radio station.
4	FOLDER/PTY button(down)	•  Selects folder to be played (MP3/WMA/AAC/CD playback). •  Selection of radio station.
5	SEEK/TRACK button(up)	•  Fast-forwards current tracks or radio stations. •  Changes CD tracks or switches radio stations.
6	SEEK/TRACK button(down)	•  Reverses current tracks or radio stations. •  Changes CD tracks or switches radio stations.
7	PRESET 1 button	Switches to radio station programmed in Preset 1.
8	PRESET 2 button	Switches to radio station programmed in Preset 2.
9	PRESET 3 button	Switches to radio station programmed in Preset 3.
10	PRESET 4 button	Switches to radio station programmed in Preset 4.
11	PRESET 5 button	Switches to radio station programmed in Preset 5.
12	PRESET 6 button	Switches to radio station programmed in Preset 6.
13	TUNE/AUDIO CONT button	•  Changes CD tracks or switches radio stations. •  Audio sound quality can be adjusted.
14	FM/AM button	Switches to radio mode.
15	CD button	Switches to CD mode.
16	USB/AUX button	Switches to USB mode/AUX mode.
17	SCAN button	Search and selection of receivable radio station is possible.
18	AUTO-M button	Stores up to six receivable stations.
19	TEXT button	Switches LCD indication.
20	POWER/VOLUME button	Audio power on/off and volume adjustment are possible.
