ANTENNA FEEDER NO.3 REMOVAL/INSTALLATION

id092000812900

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)

2.  Remove the following parts:

(1)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(3)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(4)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(5)  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

3.  Remove the rear passenger's assist handle. (See ASSIST HANDLE REMOVAL/INSTALLATION.)

4.  Partially peel back the headliner.

Note

•  If the headliner is peeled back excessively, the headliner could become creased. Be careful not to peel back the headliner excessively.

5.  Disconnect antenna feeder No.2.

6.  Detach clip A.

am6zzw00010769

7.  Remove the joint pipe No.1 clip B.

8.  Remove clips C, D and E.

am6zzw00010770

9.  Disconnect joint pipe No.2.

10.  Remove the bolt.

11.  Remove the plate for ground front side.

12.  Disconnect the center roof antenna.

13.  Remove the glass antenna terminal cover in the direction of the arrow shown in the figure. (with RDS (radio data system))

am6zzw00010771

14.  Remove the bolts. (with RDS (radio data system))

am6zzw00010772

15.  Remove the plate for ground rear side. (with RDS (radio data system))

16.  Remove the clip F. (with RDS (radio data system))

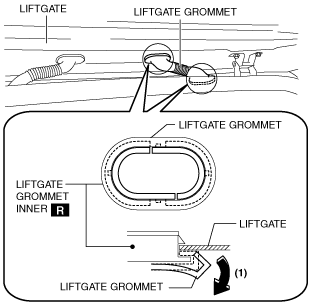

17.   Partially peel the liftgate grommet in the direction of arrow (1) shown in the figure, and remove the liftgate grommet from the liftgate grommet inner. (with RDS (radio data system))

ac5jjw00001165

18.  Using a screwdriver wrapped in protective tape, pull the liftgate grommet in the direction of the arrow (2) shown in the figure while pressing the liftgate grommet inner tab in the direction of the arrow (1) shown in the figure, and disengage the liftgate from the liftgate grommet. (with RDS (radio data system))

ac5wzw00005340

19.  Pull the liftgate grommet in the direction of the arrow (1) shown in the figure and remove it.

ac5jjw00002358

20.  Pull out the disconnected connectors on the liftgate side and vehicle interior side and antenna feeder No.3. (with RDS (radio data system))

21.  Remove antenna feeder No.3.

22.  Install in the reverse order of removal.
