CAR-NAVIGATION UNIT DISASSEMBLY/ASSEMBLY

id092000816500

Caution

•  When disassembling the car-navigation unit, it could get scratched if it is placed directly on the ground. When disassembling the car-navigation unit, spread a soft cloth underneath to perform the work.

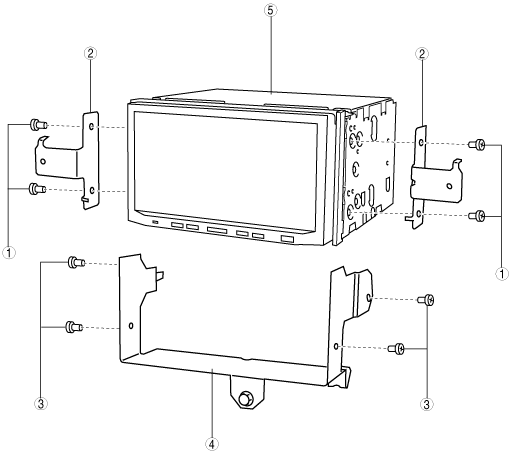

1.  Disassemble in the order indicated in the table.

am6zzw00012163

1	Screw A
2	Bracket A
3	Screw B
4	Bracket B
5	Car-navigation unit
