GENUINE NAVIGATION SYSTEM PANEL REMOVAL/INSTALLATION

id092000816700

1.  Disconnect the negative battery cable. (See \nNEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See \nNEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See \nNEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)

2.  Remove the decoration panel. (See \nDECORATION PANEL REMOVAL/INSTALLATION.)

3.  Hold the shaded area shown in the figure, pull the genuine navigation system panel in the order of arrows (1), (2), (3), and (4), and remove the clips and guides.

am6zzw00012145

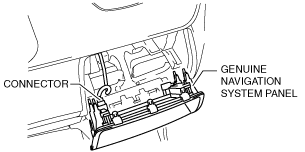

4.  Disconnect the connector.

am6zzw00012146

5.  Remove the genuine navigation system panel.

6.  Install in the reverse order of removal.
